Screw compressor Rollair 750-2000
airelectricstationary

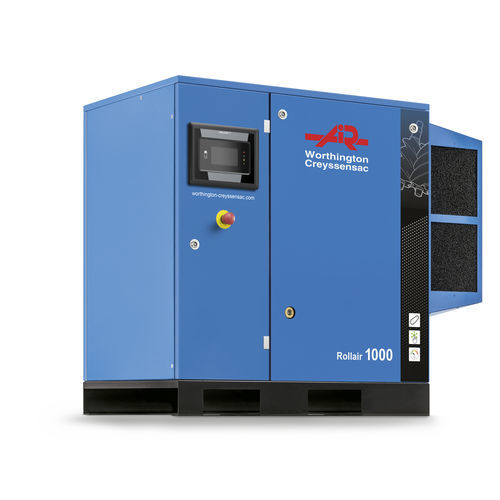

Screw compressor - Rollair 750-2000 - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair 750-2000 - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair 750-2000 - Worthington Creyssenssac - air / electric / stationary - image - 2
Screw compressor - Rollair 750-2000 - Worthington Creyssenssac - air / electric / stationary - image - 3
Screw compressor - Rollair 750-2000 - Worthington Creyssenssac - air / electric / stationary - image - 4
Screw compressor - Rollair 750-2000 - Worthington Creyssenssac - air / electric / stationary - image - 5
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-injected
Application domain
industrial
Applications
for pharmaceutical applications, for packaging
Other characteristics
high-efficiency, tank-mounted, high-performance, with control panel
Tank volume

270 l, 500 l
(71.3 gal, 132.1 gal)

Pressure

Max.: 12.5 bar
(181.3 psi)

Min.: 7.5 bar
(108.78 psi)

Flow

Max.: 132 m³/h
(4,661.54 ft³/h)

Min.: 33 m³/h
(1,165.38 ft³/h)

Power

5.5 kW, 7.5 kW, 11 kW, 15 kW
(7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp)

Length

1,210 mm, 1,460 mm, 1,540 mm, 1,625 mm, 1,940 mm
(48 in, 57 in, 61 in, 64 in, 76 in)

Width

665 mm
(26 in)

Height

1,045 mm, 1,535 mm, 1,665 mm
(41 in, 60 in, 66 in)

Weight

Max.: 515 kg
(1,135.4 lb)

Min.: 205 kg
(451.9 lb)

Noise level

64 dB, 65 dB, 66 dB, 67 dB

Description

CONNECTING COST EFFICIENCY AND PERFORMANCE Discover our new range of 5.5-15 kW RLR oil-injected screw compressors Increased Free air delivery Thanks to the Airlogic2T your compressor is fully connected. The new RLR range offers you excellent performance, plug-and- play installation and the reliability you can expect from the Worthington Creyssensac brand. The advanced connectivity adds intelligence to your compressor, allowing you to decrease operating costs further while increasing productivity AVAILABLE MODELS AND MOUNTS The new fixed speed range is available in 5.5 - 7.5 - 11 and 15 kW with a pressure range between 8 and 13 bar INCREASED UPTIME, POWERED BY ICONS With the Intelligent Connectivity System (ICONS), data and insights are delivered straight from your machines to your computer, tablet or smartphone. CUSTOMISED TO MEET YOUR NEEDS The RLR range has loads of options to customise the compressors according to your needs and wishes. FOR WHOM ? Industrial production | Aeronautics industry | Automotive industy | Electronic Industry | Military industry | Pharmaceutical industry | Energy | Livestock & Agriculture | Wrapping & packaging Improved Performance The new RLR is equipped with our newest in-house designed element leading to an increase in Free Air Delivery of up to 15% and a reduction in energy consumption of up to 18%. On 15 kW units, a bigger element with a proven track record has been selected to meet your need for compressed air.
