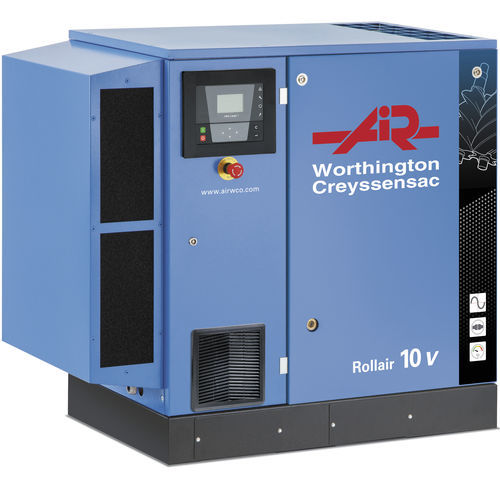

Screw compressor Rollair series
airelectricstationary

Screw compressor - Rollair series - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair series - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair series - Worthington Creyssenssac - air / electric / stationary - image - 2
Screw compressor - Rollair series - Worthington Creyssenssac - air / electric / stationary - image - 3
Screw compressor - Rollair series - Worthington Creyssenssac - air / electric / stationary - image - 4
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
tank-mounted, with control panel
Tank volume

Max.: 500 l
(132.1 gal)

Min.: 270 l
(71.3 gal)

Pressure

Max.: 13 bar
(188.55 psi)

Min.: 5.5 bar
(79.77 psi)

Flow

Max.: 140 m³/h
(4,944.05 ft³/h)

Min.: 15.8 m³/h
(557.97 ft³/h)

Power

4 kW, 5.5 kW, 7.5 kW, 11 kW, 15 kW
(5.44 hp, 7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp)

Length

Max.: 1,935 mm
(76 in)

Min.: 965 mm
(38 in)

Width

662 mm, 666 mm
(26 in, 26 in)

Height

1,045 mm, 1,531 mm, 1,665 mm
(41 in, 60 in, 66 in)

Weight

257 kg, 271 kg, 290 kg
(566.6 lb, 597.5 lb, 639.3 lb)

Noise level

Max.: 64 dB

Min.: 59 dB

Description

For industries with low air requirements. Minimizing energy consumption for the most demanding applications is a reality that allows significant savings: Opt for the Rollair 10-20EV! AVAILABLE MODELS: Floor mounted | Tank mounted | With or without integrated dryer ADVANTAGES : Easy to install | Easy maintenance | Good performances | Removable panels | A lot of options FOR WHOM ? Handcrafting | Wine & Viticulture | Electronic Industry | Livestock & Agriculture The Rollair 10-20E V range guarantees low energy consumption and has one of the highest turndown in it's category. These compressors monitor in real time the air requirements and automatically adjust their speed. Moreover, thanks to the innovative design of their direct transmission, they enable energy savings (up to 35%) and allow to reduce greatly the total cost of ownership (up to 25%). To sum up, with our Rollair 10-20E V compressors, you will : - Reduce your cost of ownership - Obtain good returns on investment - Consume less energy - Obtain excellent performances - Maintain it easily Go further The Rollair 10-20E V range offers you several options : - Graphic and integrated central controller - Compressed air filter to improve the air quality - WSD to protect your dryer from moisture - …and much more to customize your machine!
