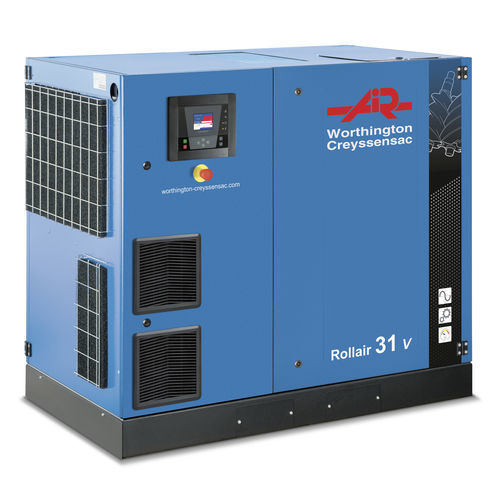

Screw compressor Rollair 16-31
airelectricstationary

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
compact, low-noise, high-performance, with control panel
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 7 bar
(101.53 psi)

Flow

Max.: 243 m³/h
(8,581.46 ft³/h)

Min.: 44 m³/h
(1,553.85 ft³/h)

Power

11 kW, 15 kW, 18.5 kW, 22 kW
(14.96 hp, 20.39 hp, 25.15 hp, 29.91 hp)

Length

1,432 mm, 1,926 mm
(56 in, 76 in)

Width

840 mm
(33 in)

Height

1,278 mm, 1,900 mm
(50 in, 75 in)

Weight

Max.: 874 kg
(1,926.8 lb)

Min.: 486 kg
(1,071.4 lb)

Noise level

66 dB, 67 dB, 68 dB, 69 dB

Description

Particularly suited to companies committed to excellence, the Worthington Creyssensac Rollair 16-31 premium screw compressor range is distinguished by its design and performance, which makes it particularly economical to use. AVAILABLE MODELS: Fixed and variable speed | Floor mounted | Floor mounted + Dryer (T) | Tank mounted (500L) + Dryer (T) ADVANTAGES : Industry leading performance | Quiet operation | High service ability | Easy maintenance | Optimal cooling & ventilation | Premium Equipment | A lot of options FOR WHOM ? Small workshop & Small-scale production | Wine & Viticulture | Electronic Industry | Livestock & Agriculture Versatile and efficient, they are very easy to use and require little maintenance. The gear drive allows our Rollair 16-31 screw compressors to deliver compressed air with high efficiency and flexibility. A Rollair 16-31 series compressor can also be supplied with an integrated refrigeration dryer and a number of options to enhance efficiency and air quality. The standard version of these compressors is equipped with the INFOLOGIC² controller which controls, protects and monitors the operation of the compressed air production plant. The ROLLAIR 16-31 range is specially designed for small and medium industries, plastic injection, textile, car dealerships.
