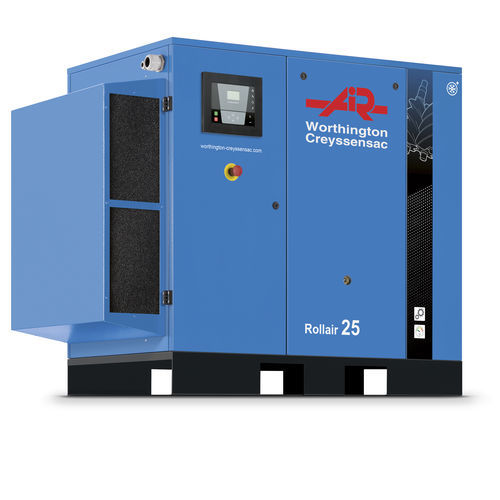

Screw compressor Rollair 20-34
airelectricstationary

Screw compressor - Rollair 20-34 - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair 20-34 - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair 20-34 - Worthington Creyssenssac - air / electric / stationary - image - 2
Screw compressor - Rollair 20-34 - Worthington Creyssenssac - air / electric / stationary - image - 3
Screw compressor - Rollair 20-34 - Worthington Creyssenssac - air / electric / stationary - image - 4
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
low-noise, high-efficiency, with tank, high-performance, small, with control panel
Tank volume

500 l
(132.1 gal)

Pressure

7.5 bar, 8.5 bar, 10 bar, 13 bar
(108.78 psi, 123.28 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 258 m³/h
(9,111.18 ft³/h)

Min.: 119 m³/h
(4,202.45 ft³/h)

Power

20 ch, 25 ch, 30 ch, 35 ch
(20 hp, 25 hp, 30 hp, 35 hp)

Length

1,395 mm, 1,545 mm, 1,940 mm
(55 in, 61 in, 76 in)

Width

835 mm
(33 in)

Height

1,220 mm, 1,835 mm
(48 in, 72 in)

Weight

Max.: 635 kg
(1,399.9 lb)

Min.: 345 kg
(760.6 lb)

Noise level

66 dB, 67 dB, 68 dB, 70 dB

Description

This range is specially designed to meet the requirements of small and medium sized companies. With the Rollair 20-34 range you obtain an efficient, reliable and complete solution which fits a broad spectrum of compressed air requirements. The different possible configurations offer the exact fit for your business needs. AVAILABLE MODELS : Fixed or variable speed | Floor mounted | Tank mounted | With or without integrated dryer ADVANTAGES : Exceptional quality | Low energy consumption | Easy accesibility and installation | A wide offer FOR WHOM ? Small workshop & Small-scale production | Wine & Viticulture | Electronic Industry | Livestock & Agriculture Designed with a new C67 compression element and direct drive, this range allows you to achieve up to 10% more flow than its predecessor. Our Rollair 20-34 range compressors offer you an efficient, reliable and complete solution for a wide range of compressed air needs. Thanks to its innovative features you benefit from a range with low noise and easy maintenance. Moreover, we wanted to propose you many options in order to complete our offer ! Options available on this range : AIRLOGIC² controller (standard for VSD) Micronic and submicronic network filters Electronic level detection trap Energy recovery system Hood heating ICONS: remote connection for information transfer Eco6i (with AIRLOGIC²): control of several compressors 8,000 hours oil Food grade oil
