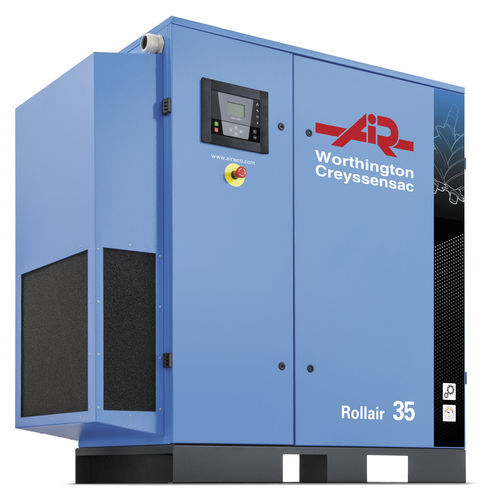

Screw compressor Rollair 30-50E
airelectricstationary

screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Applications
for automobiles
Other characteristics
high-efficiency, high-performance, with control panel
Pressure

7.5 bar, 8.5 bar, 10 bar, 13 bar
(108.78 psi, 123.28 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 374 m³/h
(13,207.69 ft³/h)

Min.: 175 m³/h
(6,180.07 ft³/h)

Power

22 kW, 26 kW, 30 kW, 37 kW
(29.91 hp, 35.35 hp, 40.79 hp, 50.31 hp)

Length

1,555 mm, 2,030 mm
(61 in, 80 in)

Width

830 mm
(33 in)

Height

1,555 mm
(61 in)

Weight

Max.: 764 kg
(1,684.3 lb)

Min.: 465 kg
(1,025.1 lb)

Noise level

66 dB, 67 dB, 68 dB, 69 dB

Description

The Rollair 30-50E fulfill the needs of the industrial and automotive sector, offering high performance and durability. The Rollair 30-50E range is a pure technology package able to meet all the requirements for industrial and automotive applications. Efficient and reliable, our compressors take advantage of the gear drive technology that greatly reduce the energy consumption compared to the belt drive technology. AVAILABLE MODELS : Fixed and variable speed | With integrated refrigerant dryer ADVANTAGES : Efficiency | Energy savings | Accessible and easy to install | Leading the innovation FOR WHOM ? Industrial productions | Automotive industry | Aeronautics industry | Food & Beverage industry The Rollair 30-50E screw compressors are the result of continual investments in research and development, a pure technology package able to meet all the requirements for industrial and automotive applications. With noise cancelling design the compressor can be installed near the workstation, decreasing installation cost. Go further Moreover, our compressors are available in both speed and fixed speed ! The advantge of the variable speed is that it can cut the energy bill of your compressor by up to 30% ! And last but not least, we wanted to offer you advanced technologies and a wide range of options to enable you get the most out of your Rollair 30-50E ! Among them, you can find : - AIRLOGIC² controller & Infologic2 - Automatic drain on the integrated water seperator - Integrated cyclonic water seperator - Filter panels - ICONS - and many others !
