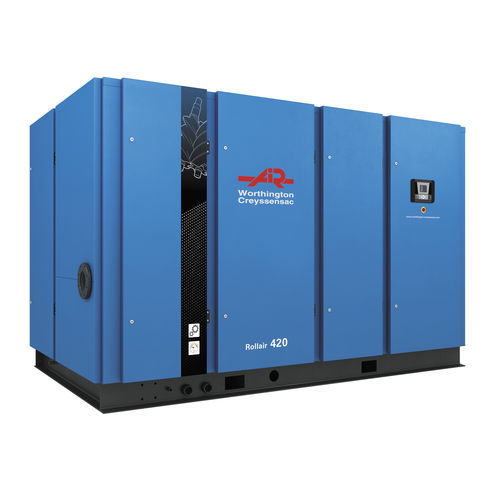

Screw compressor Rollair 270E-420
airelectricstationary

Screw compressor - Rollair 270E-420 - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair 270E-420 - Worthington Creyssenssac - air / electric / stationary
Screw compressor - Rollair 270E-420 - Worthington Creyssenssac - air / electric / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial, food, for heavy-duty applications
Other characteristics
high-efficiency, direct-drive, high-performance, with control panel
Pressure

7 bar, 8 bar, 10 bar, 13 bar
(101.53 psi, 116.03 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 3,139 m³/h
(110,852.74 ft³/h)

Min.: 1,616 m³/h
(57,068.5 ft³/h)

Power

200 kW, 250 kW, 315 kW
(271.92 hp, 339.91 hp, 428.28 hp)

Length

3,525 mm, 4,800 mm, 5,100 mm
(139 in, 189 in, 201 in)

Width

1,755 mm, 2,155 mm
(69 in, 85 in)

Height

2,005 mm, 2,275 mm
(79 in, 90 in)

Weight

3,950 kg, 4,170 kg, 5,200 kg, 5,350 kg, 6,380 kg
(8,708.3 lb, 9,193.3 lb, 11,464 lb, 11,794.7 lb, 14,065.5 lb)

Noise level

77 dB, 78 dB, 79 dB, 80 dB

Description

The Rollair 270E-420 range is designed and manufactured to allow industries to produce more during their business hours. These compressors are the guarantee of trouble-free operation! AVAILABLE MODELS : Exists in Fixed and Variable speed ADVANTAGES : Low operational costs | Efficiency | Easy to use | Intelligent control | Great serviceability FOR WHOM ? Heavy Industries (Energy, Food etc) The compressed air solution for maximum productivity Our 270E-420 compressors range will provide you high-quality compressed air! They are equipped with high efficiency motors for even more productivity and cost savings! Indeed, did you know that energy costs represent about 70% of of the total operating cost of your compressor over a 5-year period? That's why reducing the energy consumption of our compressed air installation should be a major focus! On top of that, they have a cooling module, an element and drive train, a standard enclosed intake filter, a separate inverter cubicle and much more to make sure you maximize your production ensure excellent compressed air quality!
