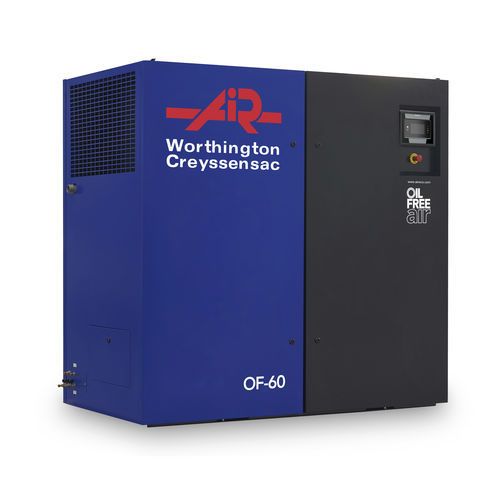

Oil-free compressor OF series
screwairelectric

oil-free compressor
oil-free compressor
oil-free compressor
oil-free compressor
oil-free compressor
oil-free compressor
oil-free compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
industrial, for medical applications, for food applications
Applications
for pharmaceutical applications
Other characteristics
high-efficiency, high-performance
Pressure

7.5 bar, 8.6 bar, 10 bar
(108.78 psi, 124.73 psi, 145.04 psi)

Flow

Max.: 8.6 m³/min
(303.71 ft³/min)

Min.: 1.8 m³/min
(63.57 ft³/min)

Power

Max.: 55 kW
(74.78 hp)

Min.: 15 kW
(20.39 hp)

Length

1,760 mm, 2,005 mm, 2,195 mm, 2,440 mm
(69 in, 79 in, 86 in, 96 in)

Width

1,026 mm
(40 in)

Height

1,621 mm, 1,880 mm
(64 in, 74 in)

Weight

Max.: 1,386 kg
(3,055.6 lb)

Min.: 984 kg
(2,169.3 lb)

Description

Worthington OF range brings you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. Built to perform even in the harshest environments, these compressors keep your production running efficiently. AVAILABLE MODELS : Variable or fixed speed ADVANTAGES : Oil-free quality air | Energy efficiency | Reliability | Good return on investment | Warranty Service Package FOR WHOM ? Pharmaceutical | Food industry | Electronic Know more about our Oil-free (OF) range A clean air and savings with our oil-free compressors Class Zero Oil-Free and environment Some applications require absolutely, unquestionably clean air. That is why our OF range delivers air that is certified to be 100% free of any traces of oil, aerosols or other contaminants. With our oil-free air technology, you protect the environment while ensuring compliance with international standards! How our compressors help you save? Our compressors are available in fixed and variable speed. As a majority of customers have a fluctuating demand for compressed air, variable speed compressors have proven to be superior to fixed speed compressors when it comes to reducing the energy costs. By matching the air supply to the air demand, unload losses are avoided, and energy costs decrease on average by 35%! Go further Exclusive Inverter Design At Worthington Creyssensac, we offer you the best technologies. The imperium* inverter is designed specifically for compressed air applications, eliminating the usual sensitivity to dust and heat.
