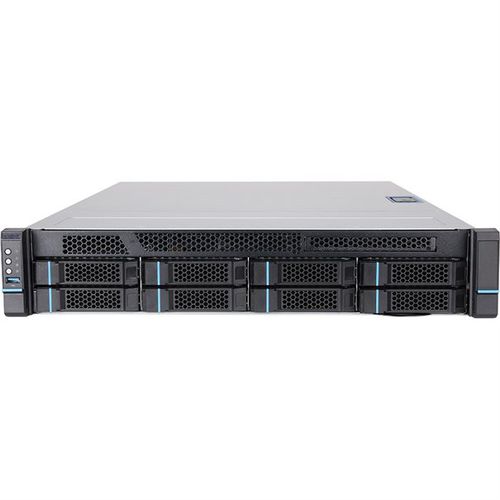

Storage server 3230 G5

2U19"Intel® Xeon

The rack-optimized systems of the TERRA SERVER 3000 series are offering you a wide variation of implementation with an excellent quality/price- ratio. The only 2U flat TERRA SERVER 3230 is designed for the use as firewall, router, proxy-server or web-server. Furthermore it can be used as a file- server, backup-server or login-server (domain- controller) with the flexible expansion capability. Its scalability permits up to 21 devices in one 19" rack. Highlights • PCIe 4.0 • HDMI (functional only with Xeon E-23xxG CPUs) • 2x 1 GbE LAN, optional 2x 10 GbE LAN • Remote Management module • TPM module • Optional redudant power supply L3 cache - 16 MB Processor family - 1-CPU / Xeon UP Processor cores - 8-Core Processor frequency - 3.2 GHz Number of processors - 1 Maximum number of SMP processors - 1 Processor socket - LGA1200 Motherboard chipset - Intel C256 - General Processor model - Intel Xeon E-2388G / 3.2 GHz Operating system - No operating system - Performance Series - SERVER 3000 Series Compatible operating systems - Windows Server 2022 Windows Server 2019 Channels quantity - 8 - Memory Internal memory - 32 GB Maximum internal memory - 128 GB Internal memory type - DDR4 UDIMM with ECC Memory slots - 4x DDR4 PC3200/2933/2666, UB ECC Memory channels - Dual-Channel-Memory-Architecture
