- Hydraulics - Pneumatics
- Valve
- Butterfly valve
- Wouter Witzel EuroValve B.V.

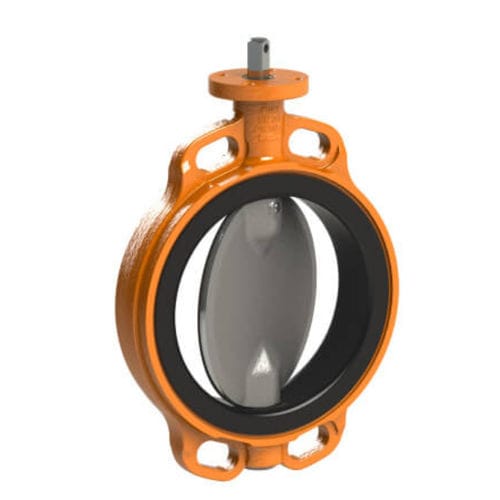

Butterfly valve EVBSleverpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- for control
- Body
- concentric, rubber
- Applications
- wafer
- DN
Min.: 50 mm
(1.969 in)Max.: 300 mm
(11.811 in)- Pressure
16 bar
(232.1 psi)
Description
Rubberlined EVBS
Short pattern, alignment holes for end of line duty
Construction - Concentric butterfly valve with bonded vulcanised rubber linings
Body type - Semi-lugged type
End connection - EN 1092 PN 10/16
Design pressure - 16 bar / 232 psi
Nominal diameter - DN 50 / NPS 2 up to DN 300 / NPS 12
Face to face - Wafer short, acc. EN 558-1/2 Series 20
API 609 Cat. A
Body material - Grey cast iron
Nodulair cast iron
Sealing - Rubber seat
Operation - Lever
Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
Catalogs
Wafer Type
5 Pages
