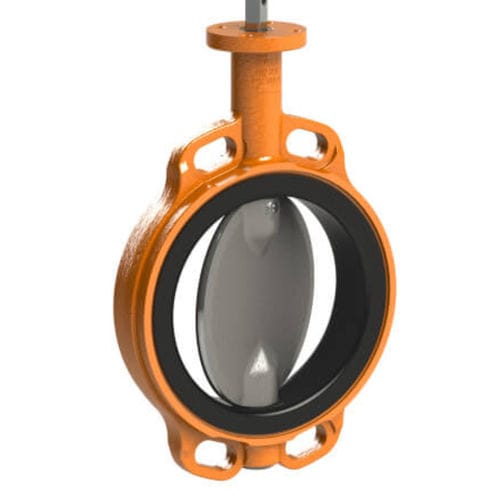

Butterfly valve EVBLSleverpneumatically-operatedelectrically-actuated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- for control
- Body
- concentric, rubber
- Applications
- wafer
- DN
Max.: 200 mm
(7.874 in)Min.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)
Description
Rubberlined EVBLS
Short pattern, alignment holes for end of line duty and long neck
Construction - Concentric butterfly valve with bonded vulcanised rubber linings
Body type - Semi-lugged type
Design pressure - 16 bar / 232 psi
Nominal diameter - DN 50 / NPS 2 up to DN 200 / NPS 8
Face to face - Wafer short, acc. EN 558 / ISO 5752, Serie 20
Body material - Grey cast iron
Sealing - Rubber seat
Operation - Lever
Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
Catalogs
Wafer Type
5 Pages
Other Wouter Witzel EuroValve B.V. products
Rubberlined Butterfly Valves
