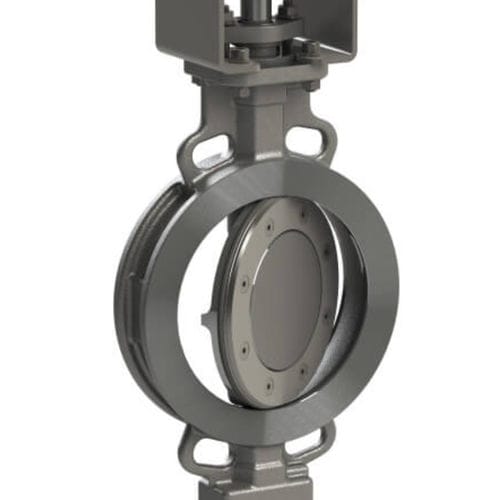

Butterfly valve W201pneumatically-operatedelectrically-actuatedhydraulically-operated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- for control
- Body
- stainless steel, carbon steel, cast, metal, rubber, titanium
- Applications
- wafer
- DN
Min.: 50 mm
(1.969 in)Max.: 900 mm
(35.433 in)- Pressure
20 bar
(290.1 psi)
Description
Dynaxe W201
Short pattern, alignment holes
Construction - High performance double eccentric butterfly valve
Body type - Wafer type
End connection - EN 1092 PN 10, 16
ASME B16.5 cl. 150 / B16.47 cl. 150
MSS SP 44 cl. 150
Design pressure - 20 bar / 290 psi
Nominal diameter - DN 50 / NPS 2 up to DN 900 / NPS 36
Building length - Wafer short, acc. EN 558 / ISO 5752, Serie 20
Body material -
Carbon Steel, Aluminiumbronze, Stainless steel cast, Duplex,
Suplex Duplex, 6 Mo, Titanium, Other materials on request
Sealing - Rubber seat
RTFE seat
RTFE – Fire Safe seat
Metal to Metal seat
Operation - Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
