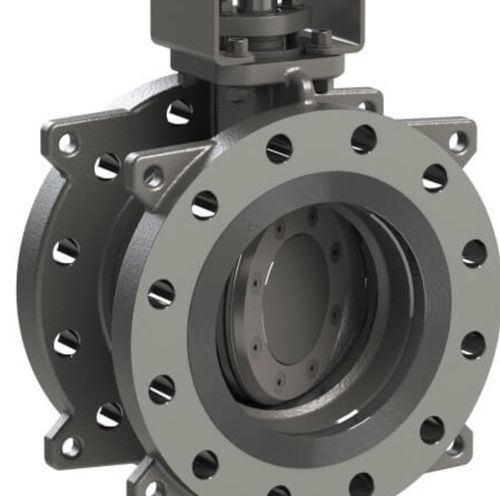

Butterfly valve F142pneumatically-operatedelectrically-actuatedhydraulically-operated
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated, electrically-actuated, hydraulically-operated
- Function
- for control
- Body
- stainless steel, carbon steel, cast, metal, rubber, titanium
- Other characteristics
- ISO, pneumatically-operated
- DN
Max.: 600 mm
(23.622 in)Min.: 80 mm
(3.15 in)- Pressure
50 bar
(725.2 psi)
Description
Dynaxe F142
Long pattern
Construction - High performance double eccentric butterfly valve
Body type - Double flanged type
End connection - ISO, PN 25 / PN 40
ASME, CL 300
Design pressure - 50 bar / 725 psi
Nominal diameter - DN 80 / NPS 3 up to DN 600 / NPS 24
Building length - Double flanged long, acc. EN 558 / ISO 5752 Serie 14
Body material - Carbon Steel, Aluminiumbronze, Stainless steel cast, Duplex,
Suplex Duplex, 6 Mo, Titanium, Other materials on request
Sealing - Rubber seat
RTFE seat
RTFE – Fire Safe seat
Metal to Metal seat
Operation - Worm gear
Pneumatic actuators
Electric actuators
Hydraulic actuators
