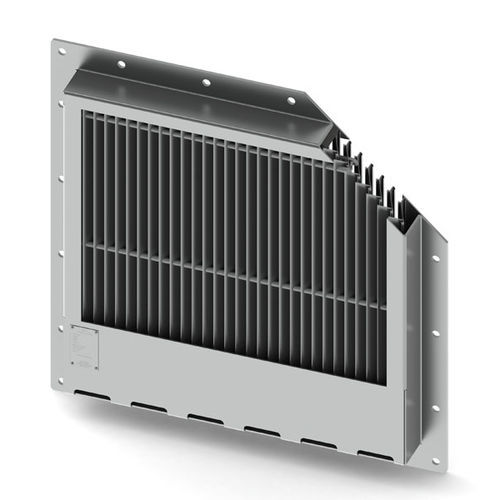

Air filter Veotec SE1

panelaluminiumstainless steel

Designed for use within the most extreme and demanding environments such as those found in Offshore, Coastal, Marine and Military applications. The single stage separator removes sea spray, rain, bulk water, salt and other fine deliquesced aerosol debris from air intakes and is typically used to protect HVAC equipment, ventilation systems and diesel engine air intakes. The Veotec SE1 modular design is intended to enable large area intakes such as those in gas turbine filter houses to be fitted in the most cost effective manner. Performance SE1 operates at over 99% removal of 5-micron water particles Materials Casing and Flanges Stainless Steel 304L/316L (1.4307/1.4404) Aluminium 5083 Materials SE Profile Vane Stainless Steel 304L/316L (1.4307/1.4404) Aluminium 6063 T6 Acrylonitrile styrene acrylate (ASA) Rigid Polyvinyl Chloride (RPVC) Vane Spacers Polyamide (Plastic) Injection Moulded Internal Foam Polyether Open Cell Foam Name Plate Stainless Steel 316L or Traffolyte Internal Sealing Sikaflex S221
