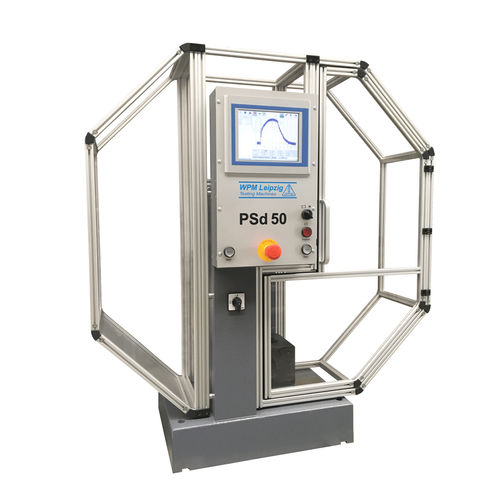

Charpy testing pendulum impact tester PSd 50/25/15

for plastics

The pendulum impact testers of WPM with a working capacity of 15, 25 or 50 J are applied for the following tests: - Notched-bar impact tests based on Charpy on plastics according to standards ISO 179, ASTM D 6110 as well as GOST 4647 - Notched-bar impact tests based on Izod on plastics according to standards ISO 180, ASTM D 256 as well as GOST 19109 - Tensile-impact strength tests on plastics acc. to standards ISO 8256 as well as ASTM D 1822 - Impact tests for testing of zinc and zinc alloys acc. to standard DIN 50116 Features: - Easily changeable strikers, support and pendulum hammers (15 J, 25 J, 50 J) - 4-digit digital display of absorbed impact energy - Digital continuous preselection of working capacity in range of 20% to 100% of nominal value (except for special models) - Measured value output via interface Ethernet to connect to PC with evaluation software - Electrical safety release of the pendulum (two-hand operation) - Impact-tensile-tests for plastics optionally available - Strikers prepared for instrumentation optionally available - New: Operation via touch screen with testing software ImpaSax
