Hydraulic winch WHW series
electricwire ropegear

Hydraulic winch - WHW series - WPT Power Corporation - electric / wire rope / gear
Hydraulic winch - WHW series - WPT Power Corporation - electric / wire rope / gear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, electric
Type
wire rope
Other characteristics
gear, worm gear, rugged, lever
Speed

Min.: 3,800 mm/min
(2.5 in/s)

Max.: 6,700 mm/min
(4.4 in/s)

Cable length

Min.: 10 m
(32'09" )

Max.: 54 m
(177'01" )

Pressure

Min.: 14 MPa

Max.: 16 MPa

Flow

Min.: 60 l/min
(15.85 us gal/min)

Max.: 68 l/min
(17.96 us gal/min)

Weight

Min.: 32 kg
(70.548 lb)

Max.: 38 kg
(83.776 lb)

Description

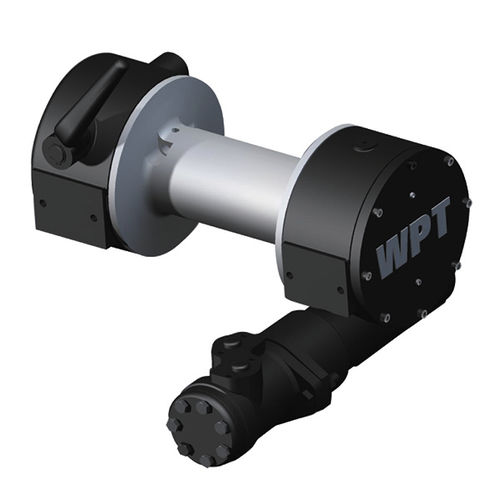

WPT Worm Gear Winches are offered from 9,000 lbf to 20,000 lbf, with options of hydraulic or electric operation. These winches are well suited for applications in the towing & recovery, utility, oil & gas, crane, and construction markets. WPT Worm Gear Winches are designed to SAE J706 standards and are available in multiple gear ratios and drum width options. WPT Worm Gear Winches provide the following benefits and features: Robust worm gear design that holds the load even if the power fails or is interrupted Lever styled clutch allows cable to be unspooled rapidly Rugged cast ductile or steel drum withstands high impact loads and cable wear Cast aluminum worm and clutch housing and cover making it extremely strong and lightweight
