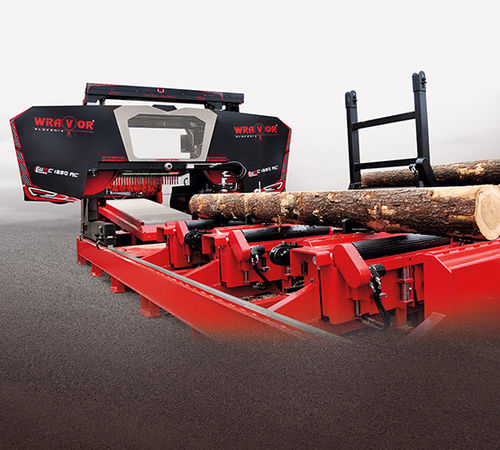

Band saw WRC 1250 AC

horizontalwoodlog

Horizontal bandsaws for high productivity sawmils • Fast and precise cut • Continuously controled cutting process with video & eye visualization • Precutter follows log shape • Pushing boards with guiding hand • Fast manipulating with log • Strong rails with extra weld hardened material, movable log turners, reinforced support , each roller movable (hight) + driven Diameter of main wheels [mm] 1250 Width of main wheels [mm] 135 Max. log diameter (Dmax) [mm] ca. Max. Width between blade guides (Gmax) [mm] 1250 Bandsaw blade length/width [mm] 9045/160 Max. Thickness of cutted board (Hmax) [mm] 340 Max. Width between grips (Vmax) [mm] 1030 Motor type + (el. Mechanical brake / frequency inverter) [kW] 45/55 Cutting capacity [m3/8h bis 55 Max. Elevation of headrig (Emax) [mm] 1150 Width of sawmill (Y) [cm] 6500 Total sawmill height (Z) [cm] 4400(4600)
