ER collet chuck QuickFlex®

drillingthreadquick-change

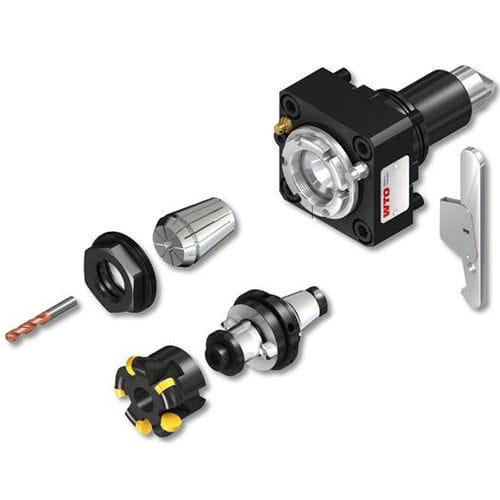

The perfect combination: ER collet chuck and quick change system in one toolholder. A change system which offers unique advantages: Minimal investment by simply clamping the cutting tool directly in the QuickFlex® toolholder using a standard ER collet and maximal expandability by adding the quick change function for reducing tool change time using QuickFlex® adapters. 01 Toolholder 02 QuickFlex® chuck 03 Collet 04 Collet nut 05 QuickFlex® adapter 06 One-hand wrench (patent registered) 07 Thread for QuickFlex® adapter and collet nut 02 QuickFlex® chuck 07 Thread for QuickFlex® adapter and collet nut 08 Short taper for radial centering and axial support of the QuickFlex® adapter 09 Taper of the ER collet chuck 10 Polygonal torque transmission for QuickFlex® adapter 11 Radial bending support of the QuickFlex® adapter for high stiffness under load Permanent accuracy of the run-out is guaranteed by two independent taper connections. Quick and safe tool change with the one-hand wrench (patent registered). ER collet chuck and quick change system in one toolholder. Minimal investment because you can start with the toolholder. You simply clamp the cutting tools directly in the toolholder using a standard ER collet chuck. The benefit for you: You start with what you need first and you buy later the quick change adapters when you like to add the quick change function. Maximal expandability because you can complement with quick change adapters at any time. The benefit for you: You can start with a basic system at low costs and later you add the quick change adapters.
