Managed ethernet switch MIEN5205C series

5 ports10/100BaseT(X)fast ethernet

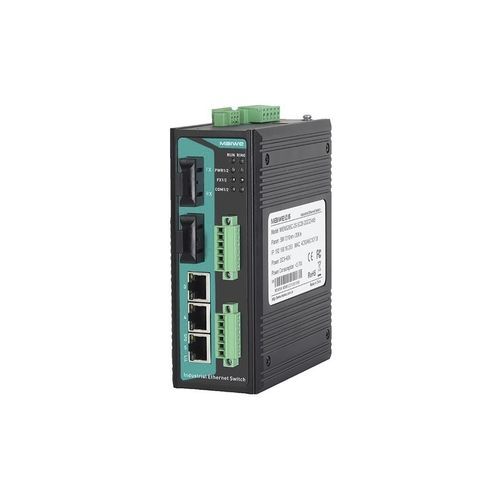

MIEN5205C series is a layer 2 managed DIN rail switch that supports 5 Ethernet ports and optionally features 2*RS232/485 or CAN ports. It allows for the integration of serial devices or CAN devices into the network. The Fast Ethernet ports can be configured as 1 fiber and 4 copper or 2 fiber and 3 copper, providing flexibility. The switch uses a store-and-forward mechanism, offering robust bandwidth processing capabilities. It automatically detects packet errors, reducing transmission issues. The product is designed with industrial-grade components, adhering to high standards in system design and production control. It can be mounted on a 35mm standard DIN rail and features a high-strength metal enclosure, making it rugged and durable. With fanless heat dissipation, it can operate in a wide temperature range from -40°C to +85°C, and it is designed with high-standard industrial protection features to withstand harsh working environments, ensuring stable communication performance. MIEN5205C series support web management functions and various network protocols, including MW-Ring v1/v2, STP/RSTP, VLAN, QoS, port mirroring, static multicast MAC address binding, network diagnostics, alarms, and online system upgrades. These features enhance network performance, reliability, and security, meeting the requirements of complex networks. It supports various network transmission modes such as UDP, TCP Client, TCP Server, and UDP multicast, enabling the networking of CAN and serial terminal devices.
