Ethernet extender Mport1101A

industrialnetwork

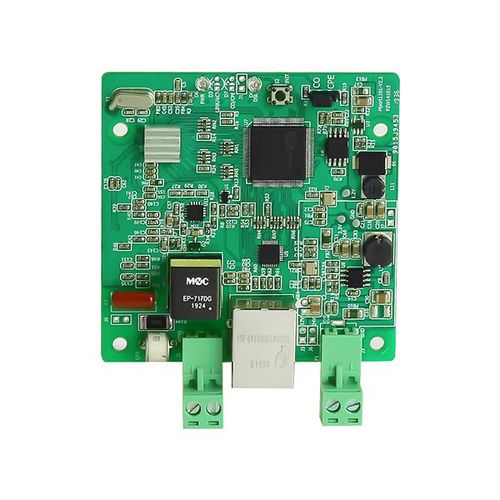

IEEE 802.3u 100Base-TX Fast Ethernet Extender IEEE 802.3x flow control and back pressure ITU-T G.933.2 VDSL2 standard Support broadcast storm suppression Protection circuit design Mport1101A single-channel embedded network extender is a point-to-point private line transmission device developed by Maiwe with VDSL2 technology. The product is used in pairs, one set to the central office (CO) and the other to be set to the user (CPE). It is a network device that can transmit Ethernet signals over long distances through ordinary cables such as twisted pairs, telephone lines, and coaxial cables. This solution exceeds the traditional Ethernet limitations and expands the copper wire network Features and Benefits -IEEE 802.3u 100Base-TX Fast Ethernet Extender -IEEE 802.3x flow control and back pressure -ITU-T G.933.2 VDSL2 standard -Support 1 DSL interface -Support 1 RJ-45 10/100Mbps Fast Ethernet port; Extend voice and Ethernet to 1 km away -Support broadcast storm suppression -Industrial grade power input, two-stage thyristor -Protection circuit design -Suitable for harsh industrial site environmental applications
