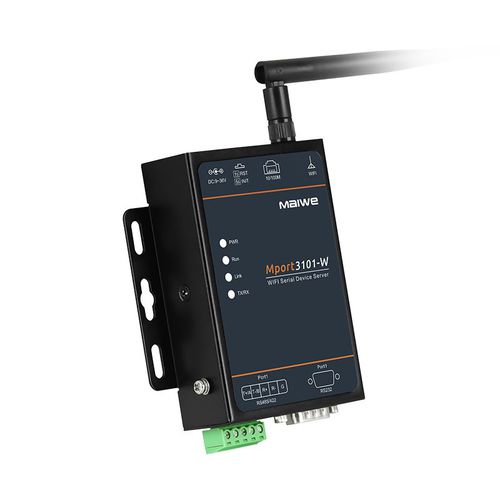

Network server Mport3101-W

webwall-mountedindustrial

Mport3101-W is a wall mounted 1-way RS232/485/422 Wi-Fi Ethernet serial server, specially designed for industrial users to provide transparent data transmission or protocol transmission between serial ports, wireless networks and wired networks. This product supports 1xRS232/485/422 serial port, 1x100Mbps copper port and 1x2.4GHz Wi-Fi interface. It also supports serial port to Wi-Fi, serial port to Ethernet and Ethernet to Wi-Fi functions. It can convert the serial port (RS-232/485/422) to a TCP/IP network interface, making it convenient and fast for serial devices connecting to the TCP/IP network, achieving interconnection between the serial port and the TCP/IP network, making industrial communication smoother, more reliable and faster. This industrial grade Ethernet serial server supports WEB configuration for various network management functions, such as serial/network working mode, Wireless settings, LAN/WAN settings, static routing, network diagnostics, access restrictions, time synchronization, logs, and alarm settings. It supports conversion modes of UDP/UDP Multicast, TCP Client/Server, Modbus RTU Master/Slave, Modbus ASCII Master/Slave, RealCOM_MCP/CCP/MW, Pair Connection Master/Slave, HTTPD Client, WebSocket Client and MQTT, to convert serial ports to Ethernet or Modbus TCP protocol. In terms of core components, this product adopts an industrial grade quality design scheme, which has many advantages such as wide temperature and pressure, lightning resistance, electromagnetic interference resistance, high reliability, high performance
