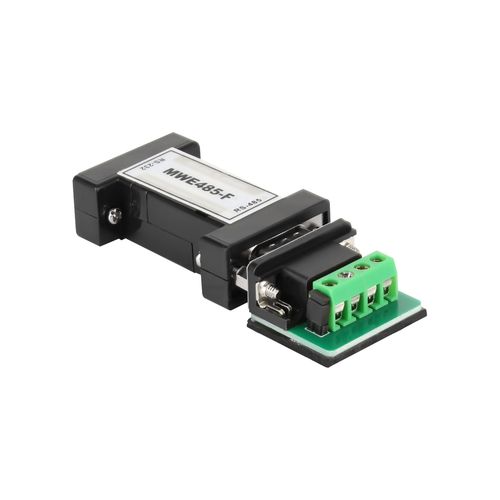

Signal converter MWE485-F

powerserialRS-232 to RS-485

Support transparent transmission, auto-sensing baud rate, up to 38400bps/57600bps/115200bps optional Specific serial port protection circuit, hot swapping supported Support RS485 data flow direction auto control, 64/128 nodes polling Equipped with integrated industrial wiring terminal block with terminal resistor Active or passive models optional, the passive models can be powered through serial port without external power supply Support electrostatic protection and lightning protection, fiber/copper port isolation Support working temperatures from -40 ℃ to +85 ℃ MWE485-F can convert a RS-232 serial port signal to a two wires semi-duplex RS-485 signal, with 2500V photo electricity isolation. The main function is to realize the bidirectional mutual conversion between RS-232 signal and RS-485 signal. The series products are powered by serial port stealing or external power supply, which has small size, long distance, stable performance and other characteristics. The MWE485-A/B/C/D/E/F series interface converters can convert RS232 port to RS485/422 port. It can achieve bidirectional data conversion between serial ports, and the converter can automatically detect the baud rate of the serial port and be convenient to use, the data flow will not loss even if the baud rate of the device changes. It uses I/O circuit to automatically control the direction of data flow, without the handshake signal settings, ensuring compliance with existing communication software and interface hardware. It supports hot swapping and can operate stably even in temperature environments ranging from -40 ℃ to +85 ℃. It can be widely used in indoor and outdoor serial field-bus systems.
