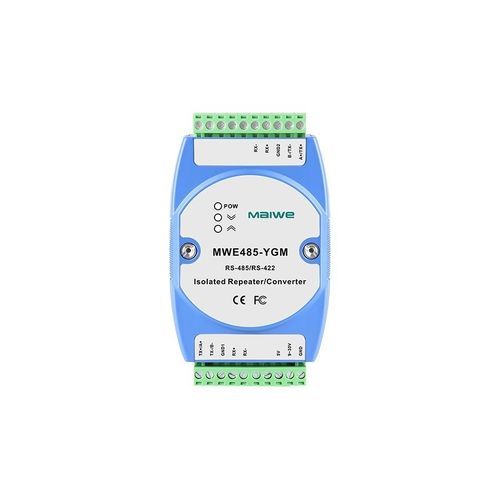

Communication repeater MWE485-YGM

industrialnetworkRS-485

Support RS485/422 serial port signal isolation and amplification, extending transmission distance Support RS485 and RS422 interface conversion Support 300bps~115200bps baud rate Support automatic identification of RS485 data flow direction and automatic forwarding with zero delay Support 15kV electrostatic protection, 600W/ms lightning protection Support 2 serial port and power supply three-terminal isolation, 2.5kV photoelectric isolation protection Supports 128-node multi-machine communication Support DC5V or DC9~30V -40 ℃~+85℃ working temperature MWE485-YGM three-terminal isolation high-speed isolation repeater can amplify the RS485/422 serial port signal, extend the transmission distance of serial port and the number of network terminals. The longest relay distance can reach 1.2km and serial port complies with the EIA/TIA RS485 and RS422 standards. It has the capable of providing isolation protection up to 2500Vrms, anti-static and lightning protection, which can improve the reliability and stability of the communication system. It supports point-to-multipoint and can connect up to 128 RS485/422 terminal devices. It uses I/O circuits to automatically control the direction of data flow, eliminating the need for handshake signal jumper settings and ensuring compliance with existing communication software and interface hardware. The hardware adopts low power consumption and wide temperature design, and has high and low temperature resistance. It can operate stably in a temperature environment of -40℃~+85℃. It can be widely used in motors, transformers, relays and other equipment or may damage during lightning.
