Communication repeater MWE485-YG
industrialnetworkRS-485

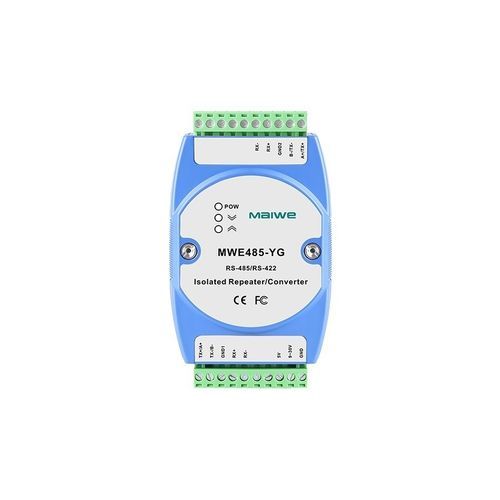

Communication repeater - MWE485-YG - Wuhan Maiwe Communication Co., Ltd - industrial / network / RS-485
Communication repeater - MWE485-YG - Wuhan Maiwe Communication Co., Ltd - industrial / network / RS-485
Communication repeater - MWE485-YG - Wuhan Maiwe Communication Co., Ltd - industrial / network / RS-485 - image - 2
Communication repeater - MWE485-YG - Wuhan Maiwe Communication Co., Ltd - industrial / network / RS-485 - image - 3
Communication repeater - MWE485-YG - Wuhan Maiwe Communication Co., Ltd - industrial / network / RS-485 - image - 4
Communication repeater - MWE485-YG - Wuhan Maiwe Communication Co., Ltd - industrial / network / RS-485 - image - 5
Add to favorites
Compare this product


Characteristics

Options
network, industrial, transmission, communication, RS-485, isolated, optical, RS-422

Description

Support 300bps~115200bps baud rate Support automatic identification of RS485 data flow direction and automatic forwarding with zero delay Support 15kV electrostatic protection, 600W/ms lightning protection and 2.5kV photoelectric isolation protection Support 128-node terminal device communication Support DC5V or DC9~30VInput Voltage Support wide operating temperature -40℃~+85℃ The MWE485-YG isolation repeater can amplify the RS485/422 serial port signal, extend the transmission distance of the serial port and the number of network terminals. The longest relay distance can reach 1.2km. The serial port complies with the EIA/TIA RS485 and RS422 standards and can provides isolation protection up to 2500Vrms, anti-static and lightning protection, which can improve the reliability and stability of the communication system. It supports point-to-multipoint and can connect up to 128 RS485/422 terminal devices. It uses I/O circuits to automatically control the direction of data flow, eliminating the need for handshake signal jumper settings and ensuring compliance with existing communication software and interface hardware. The hardware adopts low power consumption and wide temperature design, and has high and low temperature resistance. It can operate stably in a temperature environment of -40℃~+85℃. It can be widely used in motors, transformers, relays and other equipment or may be damaged during lightning. Scenarios that produce very high amplitude transient interference.
