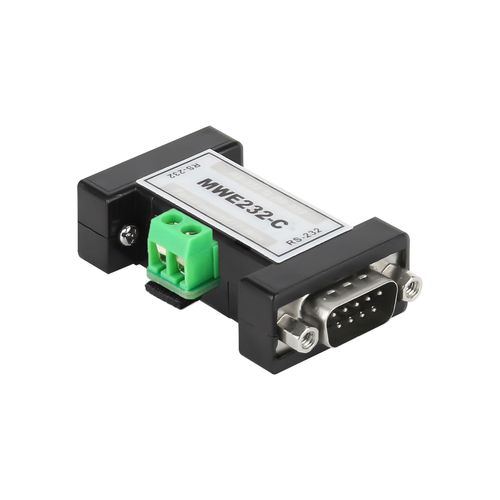

Signal isolator MWE232-C

RS232opticalpower

Support RS232 serial signal optical isolation protection and transparent data transmission Support baud rate up to 28800bps/38400bps/115200bps Specific serial port protection circuit, hot plug supported Active(C) or passive(A,B) models optional, the passive models can be powered through serial port without external power supply Support 15kV static protection and 600W/ms lightning protection Compact structure size, plug and play, easy to install Working temperature from -35 ℃ to +85 ℃ The MWE232-A/B/C series port isolator has built-in photoelectric isolation, and the interface complies with EIA/TIA RS232 standards. It can provide isolation protection of up to 2500Vrms, with static and lightning protection, which can improve the reliability and stability of communication systems. The passive models(MWE232-A and MWE232-B) can be port-powered through each side of the serial port, no need the external power supply. The specific serial port protection circuit support hot plugging. The isolator hardware adopts a low-power and wide temperature design, can operate stably in temperature environment of -35 ℃ to+85 ℃, and can be widely used in equipment such as motors, transformers, relays, or scenarios with high amplitude transient interference. Features and Benefits -Signal isolation, transparent transmission, baud Rate self-adaption -Serial circuit protection, anti-static protection, lightning protection, surge suppression -600W/ms lightning protection, 15KV static protection -Industrial design, imported components
