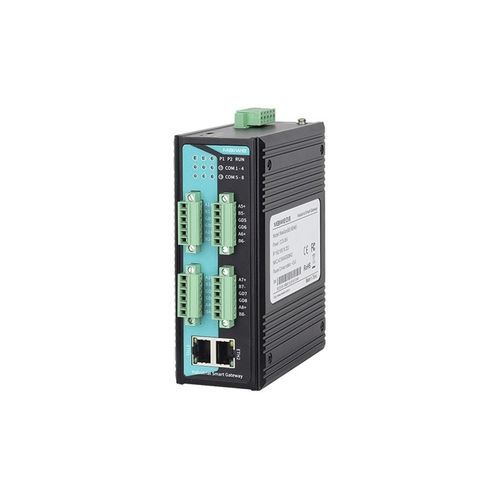

Industrial gateway MaxGate300 series

EthernetRS232Modbus

MaxGate300 series industrial modbus gateway is designed by Maiwe ,which has the characteristics of anti-lightning, anti-electromagnetic interference, high reliability and high industrial performance.It can realize the conversion between ModbusRTU/ASCII and Modbus TCP protocols, supports 8-way RS232 or RS485 serial ports, and 2x10/100M adaptive Ethernet ports, which can meet the needs of various industrial sites. MaxGate300 series can be used in power systems, industrial monitoring, traffic management, meteorology, water treatment, environmental monitoring, financial securities, coal mines, petroleum and other industries to complete on-site data collection and transmission, remote monitoring, on-site control and other system, providing users with a convenient fast networking solution. Features and Benefits: - Cortex-A7 core running at up to 792MHz - Support 8-way RS232 or RS485 serial port to 2x10/100Base-T(X) adaptive Ethernet ports. - Support conversion between Modbus RTU/ASCII and Modbus TCP protocols - Modbus configuration-free pre-reading, single serial port supports 256 Modbus RTU commands - RS232, RS485 interface up to 4kV surge protection - Support DC12~48V non-polar input -Single serial port supports up to 32 TCP Client connections -Single serial port supports up to 16 TCP Server connections
