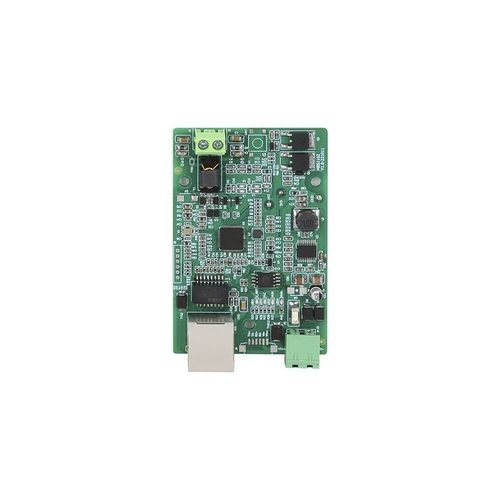

Ethernet extender MES1101

industrialnetwork

The copper port supports 10/100M auto-sensing, full/half duplex, auto MDI/MDI-X, plug and play The DSL port is used for long-distance communication through twisted pair cables, extending the transmission distance of Ethernet port up to 1km Comply with the G.993.2 VDSL2 standard that established by the International Telecommunication Union (ITU) Support DC9~24V power input and comply with intrinsic safety circuit design standard Working temperature from -20 ℃ to +75 ℃ The MES1101 is a embedded network extender that designed for industrial communication network. This product is used in pairs, with one set as the Central Office (CO) and the other set as the Customer Premises Equipment (CPE). It is a network device that can transmit Ethernet signals over long distances through ordinary cables such as twisted pair cable, telephone line, and coaxial cable. This product supports one 10/100Base-T Ethernet RJ45 port auto-sensing, full/half duplex, auto MDI/MDI-X. It has strong compatibility and can be used for the network upgrading and expansion, provide strong support for network information automation, make the industrial communication smoother, more reliable, and faster. The MES1101 supports embedded installation. It adopts high-quality imported chips,with low power consumption and fanless design, and reliable power protection for overcurrent, reverse connection and EMC, suitable for intrinsically safe power supply applications. This product adopts industrial grade quality design solution and has passed strict testing in accordance with industry standards and can adapt to harsh industrial site environments.
