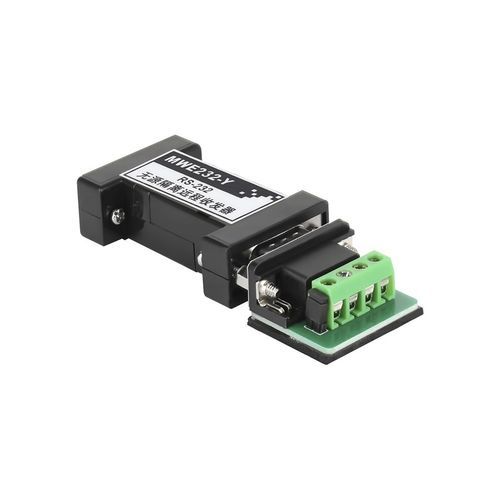

RS232 transceiver MWE232-Y

for remote controlautomationcompact

Unique serial port protection circuit, hot-swappable Support serial port power taking, no external power supply required Support 15kV electrostatic protection and 600W/ms lightning protection Compact structure, small size, plug and play, easy to install Support wide operating temperature of -35℃~+85℃ The MWE232-Y isolated remote transceiver can convert RS232 signals into current loop signals, realize RS232 serial port point-to-point remote communication, and extend the transmission distance of the serial port. The longest transmission distance can reach 3km. The serial port complies with the EIA/TIA RS232 standard and provides isolation protection, anti-static and lightning protection can improve the reliability and stability of the communication system. Power is obtained through the serial port, no external power supply is required, and the unique serial port protection circuit can be hot-swapped when powered. The hardware adopts low power consumption and wide temperature design, has high and low temperature resistance, and can operate stably in a temperature environment of -35℃~+85℃. It can be widely used in power systems, industrial automation control, remote control systems, and consoles. etc.
