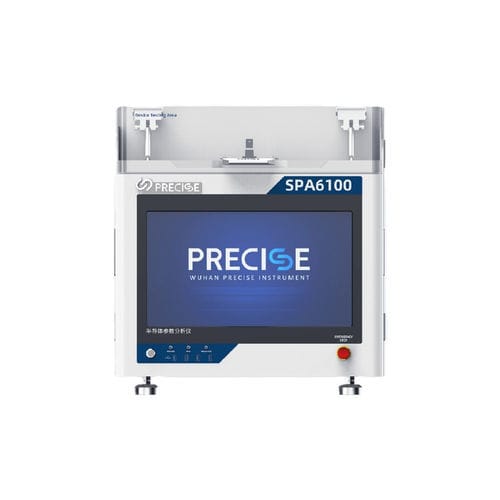

Semiconductor test system SPA-6100

impedance

SPA-6100 Semiconductor parameter analyzer Wide range testing 30μV-1200V 1pA-100A SPA-6100 Semiconductor Parameter Analyzer is a semiconductor electrical characteristic testing system independently developed and built by Wuhan PRECISE. It has the advantages of high precision, wide measurement range, fast flexibility, and strong compatibility. The product can simultaneously support the testing of DC current-voltage (I-V), capacitance-voltage (C-V) and pulsed I-V characteristics under high current and high voltage. It is designed to help accelerate cutting-edge material research, semiconductor chip device design and the development of advanced processes. It has excellent measurement efficiency and reliability. •30μV-1200V, 1pA-100A wide range test capability •High measurement accuracy, up to 0.03% in full range •Built-in standard device test program, easy to call test directly •Automatic real-time parameter extraction, data plotting, analysis functions •Quickly switch between CV and IV measurements without rewiring •Provide flexible fixture customization solutions with strong compatibility •PC software and SCPI instruction set are provided free of charge Flexible and customizable fixture solution For semiconductor device products with different packaging types on the market, PRECISE provides a complete set of fixture solutions. The fixture has the characteristics of low impedance, simple installation, and rich variety. It can be used for testing single tube and module products such as diodes, transistors, field effect transistors, IGBTs, SiC MOS, and GaN.
