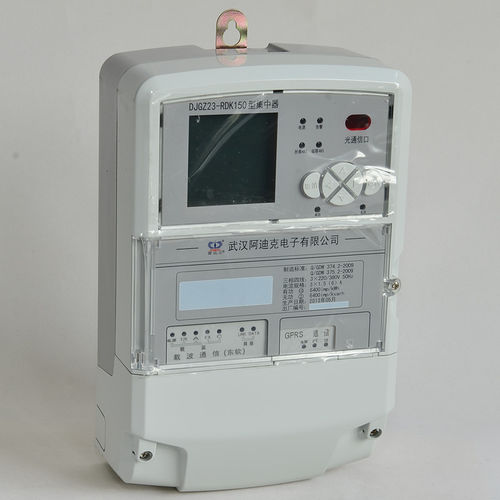

Electric energy meter concentrator RDK-JZQ

The concentrator is the key equipment of low voltage electricity centralized meter reading system, it can realize data collecting and storing with kinds of smart electricity meters, collecting terminals that having carrier communication. Its downlink channel contains low voltage power line carrier and RS485 serial communication channel. Its uplink channel can contain GPRS, CDMA, Ethernet and so on. It can exchange data with the master station or handheld devices. And it uses modularity design, so it can support the carrier module of all mainstream carrier manufacturers. This product can be used for centralized meter reading in all or different levels electric power companies, public undertakings, public buildings, residential quarters. Features: 1.Data Collecting and Handling—It can monitor and collect real time electricity quantity, month end electricity quantity, day freezing electricity quantity, curve data of interval 1 hour from important user, working status of electricity meter and etc automatically. 2.Storage Function—It can manages at least 1000 sets of single phase electricity meters, 200 sets of three phase multi function carrier electricity meters for each concentrate. 31 days 0:00am freezing data, 12 months end 0:00am freezing data and 10 important users 10 days 24 on time data. 3.Timing Function—It has time unit which can be timing by master station, the error for time unit is less than 0.5s per day, and it can handle broadcast time adjust for meters in the system. 4.Setting Function—It can set number of concentrates, communication parameters refers to master station, meter reading, master schedule ratio, line loss threshold value
