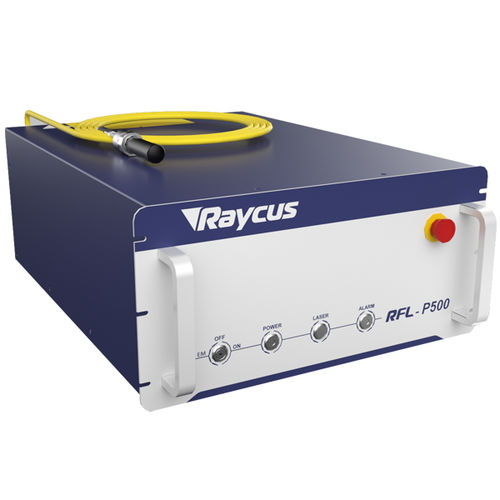

High-power laser RFL-P500

pulsedfibervisible

High-power pulsed fiber lasers series is the latest product developed by Raycus. It has average output of (200-2000W), high single pulse energy, uniform square or circular spot energy distribution, easy to use and maintain. They are the ideal products for mold surface treatment, automobile manufacture, shipping industry, petrochemical industry and tire manufacture,etc. Technical characteristics - Uniform Control Interface - Adjustable Frequency Range - High Single Pulse Energy - Excellent Light Beam Quality Optical Properties . Repetition frequency: (kHz): 10-50 . Output power instability: ±5% Output characteristics . Polarization state: random . Pulse Width Range(ns):90-160 . Max.Single Pulse Energy(mJ):25@20kHz . Output Fiber Inner Diameter(μm):200 . Delivery Cable length (m): 10 Electronic control characteristics . Input power (V AC ): 220,50/60Hz . power adjustment range (%): 10-100 Other characteristics . Dimensions (mm ): 502*254*755(handle included) . Cooling method: water cooling . Working temperature (℃ ): 10-40 Application Of 500W High-Power Pulsed Fiber Laser RFL-P500 Rust Removal Oil Cleaning Mold Surface Treatment Paint Stripping Welding Surface Pre-treatment Portrait Stone Surface Treatment
