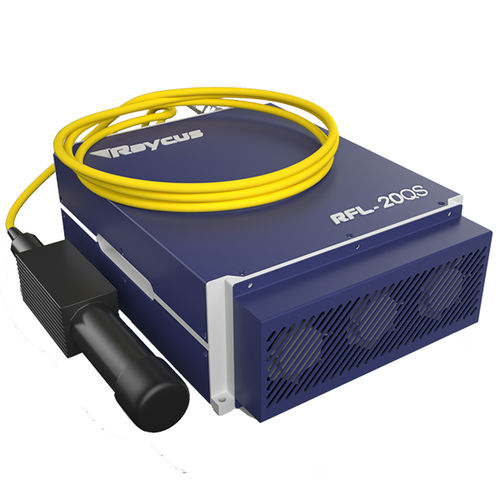

Q-switched laser RFL-P20QS

fibervisiblefor micro-machining

The 20-100W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude stress resistance, stainless materials without altitude stress resistance. Its marking process features lower cost and more stable performance compared with traditional laser. Technical characteristics - Highly stable laser output - High single-pulse energy - High marking efficiency - Short pulse setup time - High reliability - Maintenance-free operation Optical Properties . Repetition frequency: (kHz): 30-60 . Output power instability: <3% Output characteristics . Output Beam Diameter(mm): 7±1M²:<1.6 . Polarization state: random . Pulse Width Range(ns):120-150 . Max.Single Pulse Energy(mJ):0.66 . Delivery Cable length (m): 3(Customizable) Electronic control characteristics . Input power (V DC ): 24 . Power adjustment range (%): 10-100 Other characteristics . Dimensions (mm ): 290*225*95 . Cooling method: Air-cooled . Working temperature (℃ ): 0-40 Application Of 20W Q-Switched Pulse Fiber Laser RFL-P20QS Rust RemovalOil Cleaning Mold Surface Treatment Paint Stripping Welding Surface Pre-treatment Portrait Stone Surface Treatment
