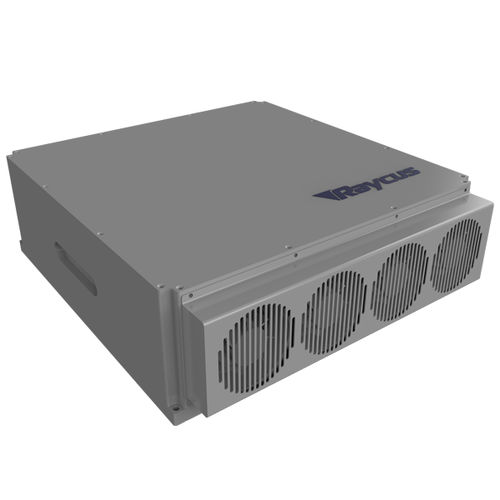

MOPA laser RFL-P100MX

short-pulseCWfiber

The brand-new short-pulse fiber laser launched by Raycus has a variety of pulse width options, including high average power (20-200W), high-peak power (≤15kW) and 2-500ns variety of pulse width, adjustable repetition frequencies of 1-2000kHz, available first pulse, cw mode Customizable, online modifiable pulse width and other characteristics. It is ideal for industrial applications in the field of solar photovoltaic, thin film cutting, sheet material cutting, welding, surface cleaning of materials, fine marking and material deepening, etc. Technical characteristics - Uniform Control Interface - Wide Modulation Frequency Range - Variety of Pulse width - Customize Pulse Width - Available first pulse - High Beam Quality - Air Cooling System Optical Properties . Repetition frequency Range(kHz): 20-1000 . Output power stability: <5% Output characteristics . Output Beam Diameter(mm): 6.5±1 . M²:<1.6 . Polarization state: random . Pulse Width Range(ns):10-350(Customizable) . Max.Single Pulse Energy(mJ):1 . Delivery Cable length (m): 3(Customizable) Electronic control characteristics . Input power (V DC ): 24 . Power adjustment range (%): 0-100 Other characteristics . Dimensions (mm ): 350*120*320(handle included) . Cooling method: Air-cooled . Working temperature (℃ ): 0-40 Application Of 100W MOPA Fiber Laser RFL-P100MX Film Cutting Anodic Aluminum Etching Colorful Marking Precision Marking Precision Cleaning Surface Heat Texturing Treatment
