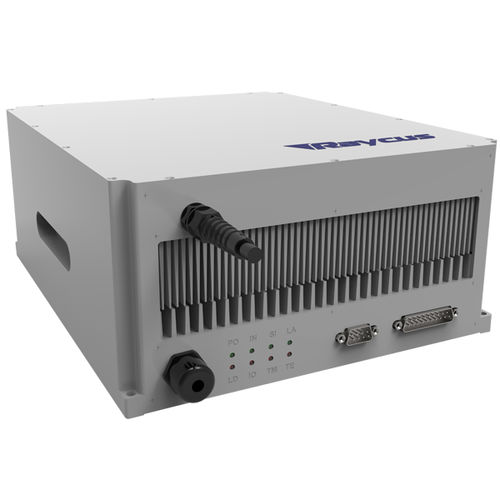

Direct diode laser RFL-FDDL50X

pulsedfibervisible

The main applications of fiber delivered direct diode lasers include laser soldering and plastic laser welding. Laser soldering provides flexible solution for unleaded electronic soldering through accurate position, temperature control. Laser soldering possesses the characteristics of Non-contact soldering, heating speed, small heat affected zone, it would be more suitable for unleaded processing by fast heating and small heat influence. At the laser beam-transmission welding plastic, this technique requires one part to be transmissive to a laser beam and the other part to be absorptive to the beam or a coating at the interface to be absorptive to the beam. The two parts are put under pressure while the laser beam moves along the joining line. Technical characteristics - Application Market: laser Soldering and laser beam-transmission welding plastic Optical Properties . Output power instability: <1% . Red Guide Laser:650±10nmm0.25-1mW Output characteristics . Fiber core(μm):200 . Output interface Type:SMA905/D80 Electronic control characteristics . Control Method: Touch Panel/RS232/AD . Input power (V DC ): 24 Other characteristics . Dimensions (mm ): 260*130*340(handle included) . Cooling method: Air-cooled . Working temperature (℃ ): 0-40 Application Of 50W Fiber Delivered Direct Diode Lasers RFL-FDDL50X 3C electricity Optical communication Micro-electricity Camera Mold Home appliances car lighting medical packaging
