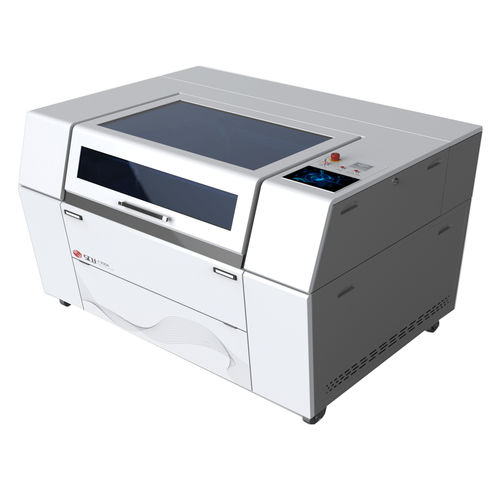

Engraving cutting machine SCU1290-A

CO2 laserservo-drivenfor industrial applications

Technical Parameters Terms - Technical Parameters Model - SCU1290 Working platform size - 1250x900mm Power - CO2 Laser Tube Controlling system - RD System Software - RDCAM Driver - Stepper Motor Driver/Servo Motor Driver Transmission - Belt Transmission/Ball Screw Transmission Support format - PLT, BMP, DXF, T100, etc Process Material - Nonmetals, Painted Metals Idle speed - ≤1200mm/s Repeated accuracy - ≤±0.025mm Min. line Width - 0.2mm Cooling ways - Forced-air Cooling Working temperature - 0-35°C Working humidity - 5-95% Working Power - 220V/50Hz/1.5kVA(Customized) Auxiliary Equipment - Air pump, Exhaust Fan Up & Down Table - 15cm adjustable, or customized Optional configuration - Rotary Device Dimension - 2185X1465X1260mm Net weight - 500KG Package - Standard Crate for export Applicable Fields & Materials: The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on. *Handcraft industry. Plywood,Glass,Marble,Density board,Gifts,Trophy, Marks, Key chains. *Furniture, Wood,Bamboo,MDF, Home textile, Seat Cushions,Ceramic. *Advertising industry, Advertising plate, Acrylic, Plastic, PVC,Signs. *Garment,Jeans,Leather,Chemical leather, Shoes material. *Decoration, Paper Board,Organic glass,Vases,Derma. *Model manufacturing. Our Service: Our Service Pre-sales Service: 1) According to customers demands, provide relevant technical guidance 2) Assist customers to design and make laser cutting & engraving solutions considering technical feasibility 3) Provide equipment demonstration for customers to investigate, make samples and do test, etc
