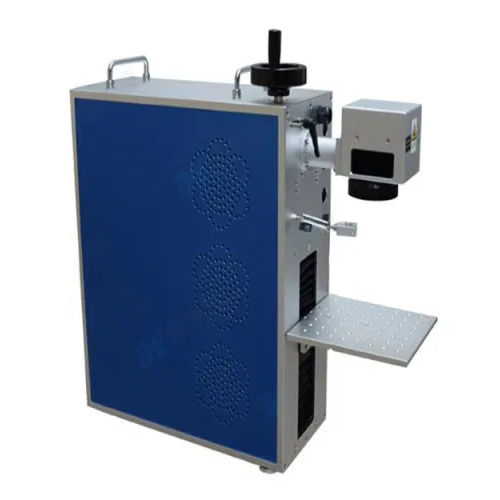

Mobile marking machine SFM series

fiber laserplasticfor jewelry

Description The machine adopts fiber laser source and speedy galvo scanning system. High quality of laser beam, long service time and stable equipment performance exempts maintenance. The marking is non-touched process, permanent effect, humanized operation and stable running. 24-hour non-stop running makes it meet the demand of massive on-line and off-line industrialized production. AutoCAD, CorelDRAW, Photoshop compatible, PLT, PCX, DXF, BMP, JPE etc supportive. Applicable Fields The machine is widely applied in electronic and communication area, it can mark on multifarious parts of autos, hardware, apparatus, sanitation, plastic surface, lood packaging, jewelry, exact instrument etc. It is suitable to do legion domanial figure and literal marking. Technical Parameters Type - SFM20/SFM30 Laser Mode - Raycus Fiber Laser Source Wavelength - 1064nm Laser Power - 20W/30W Power Stability - ≤0.5% Marking Speed - ≤7000mm/s Laser Accuracy - 0.025mm Beam Size - 0.1mm Frequency - 20kHz~100kHz Working Area - 110*110mm/200*200mm Galvo scanner brand - Sino-galvo Field lense brand - Wave length Expect Service Time - 5 years Indicating Beam - Two Red Light Cooling Way - Forced-air Cooling Power Supply - 220V/50Hz/2kVA (Customized) Package size - 755mm*590mm*360mm Package method - carton box package Grass weight - 26KGS Software - EzCad File Formats - PLT, PCX, DXP, BMP, JPG etc Output Compatibility - AutoCAD, CorelDRAW, Photoshop etc Marking Varieties - Words, Pictures, Bar Codes, Serial Numbers etc
