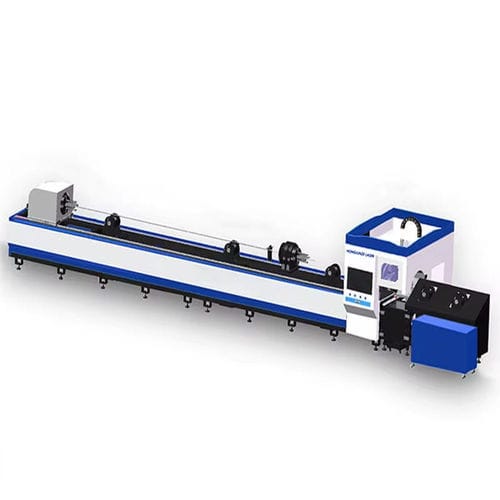

Fiber laser cutting machine 2000-TB
for metaltubedrilling

Fiber laser cutting machine - 2000-TB - Wuhan SWT Laser Technology - for metal / tube / drilling
Fiber laser cutting machine - 2000-TB - Wuhan SWT Laser Technology - for metal / tube / drilling
Fiber laser cutting machine - 2000-TB - Wuhan SWT Laser Technology - for metal / tube / drilling - image - 2
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for metal
Product handled
tube
Associated function
drilling, multi-function, contour
Applications
for industrial applications
Workpiece loading
automated loading/unloading
Configuration
single-head
Other characteristics
high-power
X travel

500 mm
(19.69 in)

Min.: 1 mm
(0.04 in)

Max.: 1,000 mm
(39.37 in)

Y travel

6,000 mm
(236.22 in)

Min.: 3,000 mm
(118.11 in)

Max.: 6,000 mm
(236.22 in)

Tube diameter

500 mm
(20 in)

Min.: 1 mm
(0 in)

Max.: 1,000 mm
(39 in)

Cutting speed

10 m/s
(32.808 ft/s)

Min.: 1 m/s
(3.281 ft/s)

Max.: 24 m/s
(78.74 ft/s)

Laser power

1,500 W, 2,000 W, 3,000 W, 6,000 W

Repeatability

0.02 mm
(0.0008 in)

Resolution

720 dpi

Min.: 480 dpi

Max.: 1,080 dpi

Acceleration

20 m/s²
(66 ft/s²)

Min.: 15 m/s²
(49 ft/s²)

Max.: 30 m/s²
(98 ft/s²)

Overall length

7,000 mm
(276 in)

Overall width

2,000 mm
(79 in)

Height

1,700 mm
(67 in)

Weight

10,000 kg
(22,046.23 lb)

Min.: 9,000 kg
(19,841.6 lb)

Max.: 12,000 kg
(26,455.47 lb)

Description

Advantages: 1.it provides high precision cutting, ensuring accuracy and consistency in the final product. 2.it produces smooth edges without the need for additional finishing processes. 3.the machine minimizes material waste, leading to cost savings and environmental benefits. 4.the laser cutting machine is versatile, capable of cutting complex shapes and intricate designs with ease. 5.it operates at a fast processing speed, increasing productivity and efficiency in manufacturing processes. 6 6.the laser cutting machine is a valuable tool for achieving high-quality results in sheet material cutting applications. Introduction: The laser cutting machine for sheet materials is a cutting-edge tool that utilizes a high-powered laser beam to cut through various materials with precision and accuracy. It is widely used in industries such as manufacturing, automotive, aerospace, and signage for cutting, engraving, and marking applications. The machine offers high efficiency, versatility, and speed in processing sheet materials, making it a valuable asset in modern manufacturing processes. Applications: 1. Automotive industry for metal components 2. Aerospace sector for aluminum and composites 3. Signage industry for acrylic and wood designs
