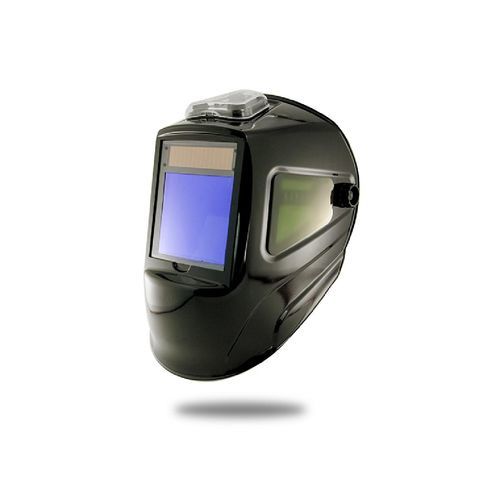

Auto-darkening welding helmet WH9806-SV
EN 175TIGIR protection

Auto-darkening welding helmet - WH9806-SV - Wuhan Welhel Photoelectric Co., Ltd - EN 175 / TIG / IR protection
Auto-darkening welding helmet - WH9806-SV - Wuhan Welhel Photoelectric Co., Ltd - EN 175 / TIG / IR protection
Auto-darkening welding helmet - WH9806-SV - Wuhan Welhel Photoelectric Co., Ltd - EN 175 / TIG / IR protection - image - 2
Auto-darkening welding helmet - WH9806-SV - Wuhan Welhel Photoelectric Co., Ltd - EN 175 / TIG / IR protection - image - 3
Auto-darkening welding helmet - WH9806-SV - Wuhan Welhel Photoelectric Co., Ltd - EN 175 / TIG / IR protection - image - 4
Auto-darkening welding helmet - WH9806-SV - Wuhan Welhel Photoelectric Co., Ltd - EN 175 / TIG / IR protection - image - 5
Add to favorites
Compare this product


Characteristics

Type
auto-darkening
Norms
EN 175
Options
TIG, IR protection, UV protection

Description

-Viewing area:100X93MM Optical class:1/1/1/2 -Switching time:0.04ms -Dark state:DIN5-9/9-13 -sensitivity &delay time:Stepless -Sensors:4 -Material of helmet:EN 175B -Suitable for all types of welding Model:WH806-SV Light state: Main Window DIN4 ; Side Window DIN5 Dark state:Main Window DIN5-9/9-13 ; Side Window DIN5 Switching time:<0.04ms Optical rating:1/1/1/2 Viewing area:100x93 mm main window 50/85x100 mm side window Lens Shade (DIN):5-9 / 9-13 main window 5 side window Light Shade(DIN):4 main window 5 side window Sensors:4 UV/lR Protection:Up to DlN 16 On / off:Automatic Shade control:Outside & Stepless Light Sensitivity Control:Outside, Low-High; adjust by infinitely dial knob Delay control/Delay time (dark to light):Outside, 0.15-0.80s by infinitely dial knob TlG amps rated:≥2 amps Grind mode:Yes, outside Weight:595 gr Operating Temperature:-5℃ (23°F)- +55℃ (131°F) Storing TemperaturePower Supply:-20℃ (-4°F)- +70℃ (158°F) Power Supply Solar power & replaceable battery:2xCR2450 Lithium battery
