Swing check valve 0ASH44X1-16Q series
discfor waterflange

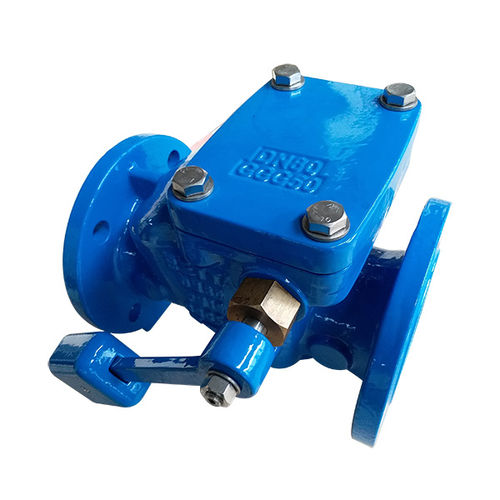

Swing check valve - 0ASH44X1-16Q series - WuXi BETTA Fluid Control Co., Ltd. - disc / for water / flange
Swing check valve - 0ASH44X1-16Q series - WuXi BETTA Fluid Control Co., Ltd. - disc / for water / flange
Swing check valve - 0ASH44X1-16Q series - WuXi BETTA Fluid Control Co., Ltd. - disc / for water / flange - image - 2
Swing check valve - 0ASH44X1-16Q series - WuXi BETTA Fluid Control Co., Ltd. - disc / for water / flange - image - 3
Swing check valve - 0ASH44X1-16Q series - WuXi BETTA Fluid Control Co., Ltd. - disc / for water / flange - image - 4
Add to favorites
Compare this product


Characteristics

Type
swing, disc
Fluid
for water
Body
flange
Applications
hydraulic, for water
Material
stainless steel, ductile iron
Valve plug seal material
EPDM
DN

80 mm, 100 mm, 150 mm, 200 mm
(3.15 in, 3.937 in, 5.906 in, 7.874 in)

Pressure

16 bar
(232.1 psi)

Description

BETTA swing check valve-Resilient Seated to AS4794 with lever&weight for drinking water and neutral liquid applications to max. 40℃ Test/Approvals: Hydraulic test according to BS5153/AS4794 Seat: 1.1PN, Body: 1.5PN Standards: Designed and certified according to AS4794 Face to face according to BS5153/AS4794 Flange drilling to AS/NZS4087 Fig.B5 PN16 AS4020 compliance Features: Body and Bonnet of Ductile Iron with epoxy coating to AS/NZS 4158 Disc design with a steel or ductile iron insert fully vulcanized with EPDM rubber Hinge of stainless steel 316 for sizes less than 200mm, ductile iron coated with drinking water approved epoxy for larger All rubber parts are multi approved Shaft of Stainless Steel ASTM A276 SS431 AS4020 drinking water compliance Optional lever and counterweight Valve designed for use up to 40℃
