Dual-axis inclinometer BWK228

digital4-20 mAcurrent output

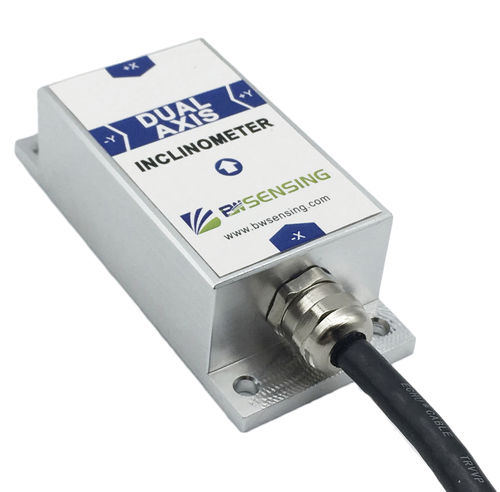

Designed by Bewis Sensing Technology LLC, BWK228 is a current output double-axis inclinometer. Standard current output 4-20mA, 0-2-mA, 0-24mA. Technical Specifications Measuring range: 0~±90 Measuring axis: X Accuracy: 0.2°(Max) Working temperature: -40℃~+85℃ Frequency response: 100 Hz Shock resistance: 2000g,0.5ms,3times/axis MTBF: ≥30000hours/time Insulation resistance: ≥100MΩ Weight: 210g(package excluede) If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding. This product converts static gravity field changes into angle changes, It outputs horizontal angle values directly by digital, this product has the advantages of low cost, small température drift, simple to use, and strong résistance to external disturbances. It is an idéal option for attitude measurement in photovoltaic power (PV) , PTZ control, tower turbines monitoring and other industries.
