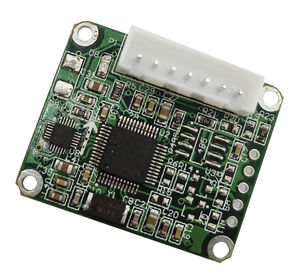

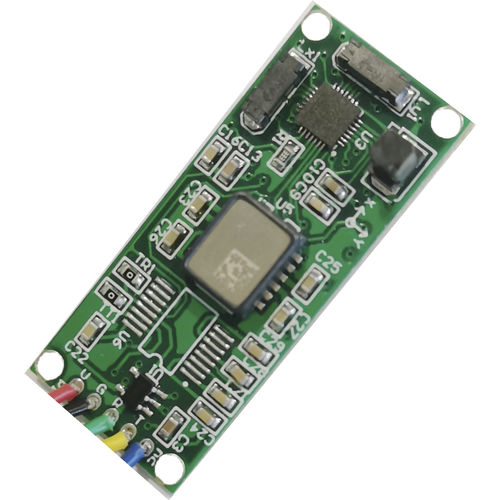

Electronic compass HEC303

3Dtilt-compensated

The HEC303 high-precision electronic compass is composed of an industrial-grade single-chip microcomputer with high reliability and strong anti-interference ability, and a high-precision magnetic sensor and drive chip. At the same time, it integrates the hard magnetic and soft magnetic calibration algorithms of BWSENSING patented technology, and uses a three-axis accelerometer to compensate the tilt angle, so that accurate heading data can be provided in extremely harsh environments. Through the optimized extended Kalman filter algorithm, the product outputs high-precision attitude information in real time. Integrating a new twelve-position calibration algorithm, calibration is more convenient and flexible. Product Advantages ● Three-axis accelerometer, three-axis magnetometer ● Static measurement accuracy is up to 0.25° ● Offset tracking algorithm eliminates drift ● High precision, low cost ● Wide temperature range: -40℃~+85℃ ● Volume: L33*W31*H13.55 (mm) ● With hard magnetic, soft magnetic and tilt compensation ● Standard RS232/TTL output connection
