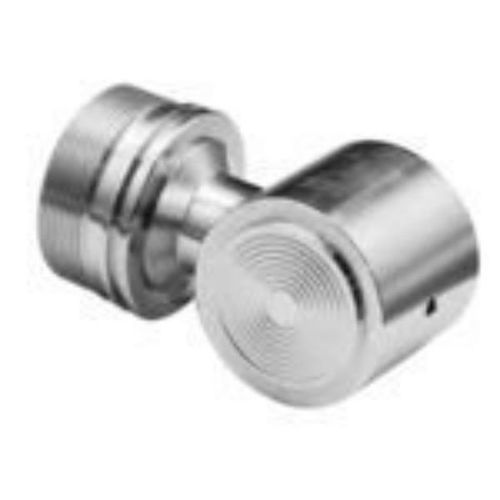

Differential pressure sensor DKS-DP600-M1

siliconstainless steelMEMS

Differential Pressure Sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology, and the world's original monocrystalline silicon double-beam suspension design, which achieves the international leading over-pressure performance and ensures the excellent stability of the signal. Embedded with the intelligent original imported pressure measuring diaphragm and signal processing module, it realises the perfect combination of static pressure and temperature compensation, which can provide high measurement accuracy and stability under a wide range of static pressure and temperature. BW-DKS-DP600 Differential Pressure Sensor is a pressure sensor that acts directly on the diaphragm of the sensor, causing the diaphragm to produce a micro-displacement proportional to the pressure, detecting this change with an integrated electronic circuit and converting the output to a standard measurement signal corresponding to the pressure.
