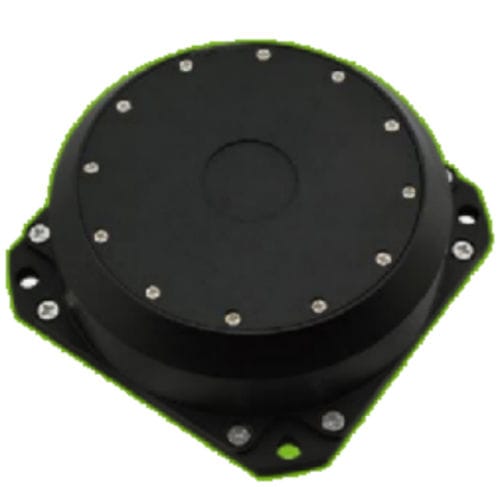

Single-axis gyroscope AgileLight-710A

digitalhigh-resolutionfor aeronautics

AgileLight-710A is an interferometric digital closed-loop Single Axis Fiber Optic Gyroscope with large operating bandwidth, high resolution, small zero drift, high linearity, short start-up time, shock and vibration resistance, low cost, etc. It is an alternative to the traditional mechanical gyroscope. AgileLight-710A Fiber Optic Gyro adopts the unique IntelliProcess technology, which not only eliminates the influence of temperature change on the gyro's performance to the maximum extent, but also significantly improves the key indexes of Fiber Optic Gyro such as zero-bias stability, angular random wander, scale factor linearity and stability. Extremely low zero-bias stability and angular random wander, as well as strong vibration resistance make it perfect for a variety of industrial applications. the AgileLight-710A's high performance, ruggedness, compactness, and competitive pricing make it the first choice for motion sensing, platform stabilisation, navigation, and precision targeting. Measurement range - - ±500°/s Zero-bias stability (10s, 1σ, Room temperature) - - ≤0.007°/h Zero-bias stability (100s, 1σ, Room temperature) - - ≤0.003°/h Zero-bias repeatability (1σ, Room temperature) - - ≤0.007°/h Random Walk Factor - - ≤0.0007°/√h Scale factor nonlinearity - - ≤5ppm Scale factor asymmetry - - ≤5ppm Scale factor repeatability - - ≤5ppm Data refresh rate - - 200~2000Hz Bit rate - - 115200~921600bps Bandwidth (-3dB) - - ≥200Hz Power Input - - -5V～+5V Maximum Power Consumption - - ≤6W Start-up time - - ≤1s Dimension - - Φ120×H35 Weight - - 840g Communication Interface - - RS422 Operating Temperature - - -40～+65℃ Storage temperature - - -50～+80℃
