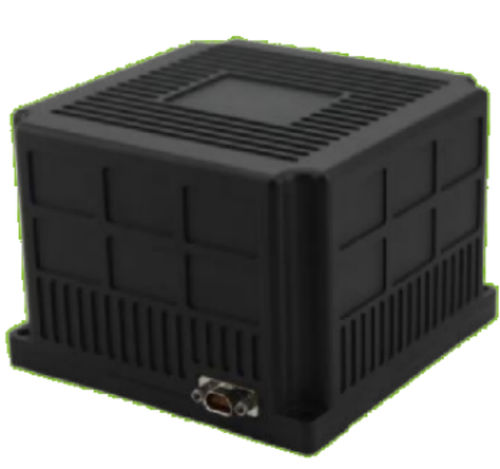

Digital gyroscope AgileLight-510C

triaxialhigh-resolutionfor aeronautics

AgileLight-510C is an interferometric digital closed-loop Three Axis fiber-optic gyroscope with large operating bandwidth, high resolution, small zero drift, high linearity, short start-up time, shock and vibration resistance, low cost, etc. It is an alternative to the traditional mechanical gyroscope. AgileLight-510C fiber Optic Gyro adopts the unique IntelliProcess technology, which not only eliminates the influence of temperature change on the gyro's performance to the maximum extent, but also significantly improves the key indexes of Fibre Optic Gyro such as zero-bias stability, angular random wander, scale factor linearity and stability. Extremely low zero-bias stability and angular random wander, as well as strong vibration resistance, make it perfectly suited for a variety of industrial applications. the AgileLight-510C's high performance, ruggedness, compactness, and competitive pricing make it the first choice for motion sensing, platform stabilisation, navigation, and precision targeting. Measurement range - - ±1000°/s Zero-bias stability (10s, 1σ, Room temperature) - - ≤0.5°/h Zero-bias repeatability (1σ, Room temperature) - - ≤0.5°/h Random Walk Factor - - ≤0.05°/√h Scale factor nonlinearity - - ≤100ppm Scale factor asymmetry - - ≤100ppm Scale factor repeatability - - ≤100ppm Data refresh rate - - 200~2000Hz Bit rate - - 115200~921600bps Bandwidth (-3dB) - - ≥200Hz Power Input - - 24V Maximum Power Consumption - - ≤18W Start-up time - - ≤1s Dimension - - Φ112×H77.5 Weight - - 1200g Communication Interface - - RS 422 Operating Temperature - - -40～+65℃ Storage temperature - - -50～+80℃
