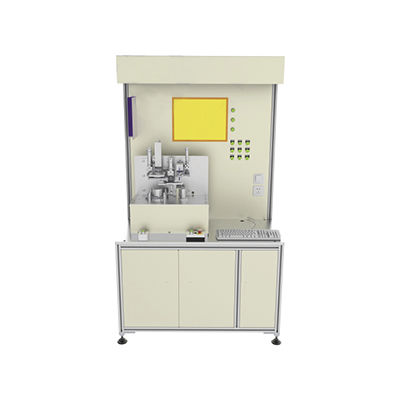

Connecting rod measuring machine

diameterroundnessthickness

Comprehensive measuring machine for connecting rod can realize the automatic measurements of the following items: bore diameter, roundness and cylindricity; centre-to-centre distance between two bores; curvature, distortion and thickness. SPC analysis of the above measurement data can be conducted. Technical parameters Measurement principle: Comparison measurement. Displacement sensor is used to measure the difference between the measured parts and the calibration parts, and then the relative sizes of the measured parts are calculated. Measurement range: Manual adjustments for various sizes measurements. Measurement takt time: ≤30 seconds, under normal condition and operation Measurement position technology level: sensor resolution: 0.0001mm, measurement accuracy: ±0.001mm, stability accuracy: ±0.001mm/4 h, GR&R: ≤10%. Technical characteristics •High measurement precision •High measurement accuracy •High measuring efficiency ≤ 30 sec / piece •Greatly reduce labor costs
