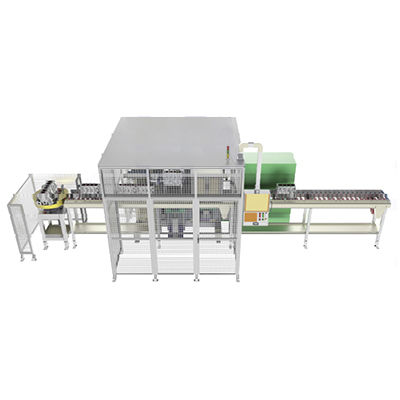

Cylinder block measuring machine

diameterroundnesscylindricity

Cylinder block measuring machine realizes the loading on the production line through automatic conveyor line, automatic location of workpiece and diameter, roundness, cylindericity measurement of cylinder bore and crankshaft bore. It also has the following functions: automatic grouping of crankshaft bores in accordance with measurement results; automatic imprinting of plain code and 2D code of grouping information on the cylinder block in accordance with grouping results; automatic identification and warning of the unqualified products and transportation of the unqualified out of the line; SPC analysis; data memory and saving. Technical parameters Measurement principle: Comparison measurement. Displacement sensor is used to measure the difference between the measured parts and the calibration parts, and then the relative sizes of the measured parts are calculated. Measurement takt time: ≤120 seconds, under normal condition and operation Measurement position technology level: resolution: 0.0001mm, measurement accuracy: ±0.001mm, GRR: ≤10%. Technical characteristics •High measurement precision •High measurement accuracy •High measuring efficiency •Greatly reduce labor costs
