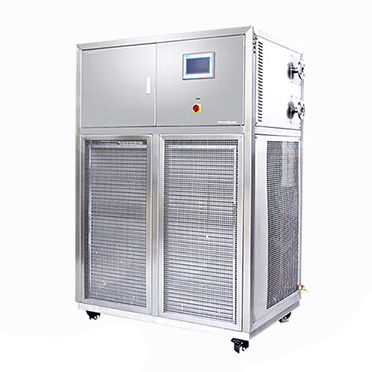

Air chiller SUNDI

industrial

In comparison to other thermal control systems, Dynamic Temperature Control systems differ sometimes considerably in their thermodynamic characteristics. In practice, Dynamic Temperature Control systems offer definite advantages in your work: noticeably shorter heating and cooling times, better stability and reproducibility through the entire process chain, greater safety for expensive glass reactors and the contained substances, together with the simple and easy operation. Temp. range-45℃～+250℃ Control ModeFeedback PID + Our special dynamic control calculation, PLC controller Temp. controlProcess temp. control and jacket temp. control model Temp. differenceSet or control the temperature difference between jacket oil and raw material process Program Editor10 programs, each program can edit 42 steps. Communication PortocolMODBUS RTU Protocol, RS485 interface Material temp. feedbackPT100 OR 4～20mA or communication（normal: PT100) Temp. feedbackThe temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor) Typical application of refrigeration heating temperature control system Dynamic thermostatic control of cold and heat source of high pressure reaction kettle, dynamic thermostatic control of double layer glass reaction kettle, and dynamic thermostatic control of cold and hot source of double-layer reactor. Microchannel reactor thermostatic control, small temperature control system, steam - feeding system temperature control, material low temperature aging test.
