Liquid chiller explosion-proof Chiller CDLJ -115℃~-50℃
laboratorylow-temperature

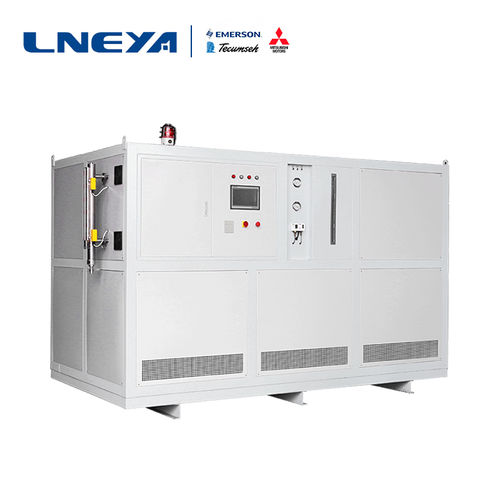

Liquid chiller - explosion-proof Chiller CDLJ -115℃~-50℃ - Wuxi Guanya Temperature Refrigeration Technology Co. Ltd.. - laboratory / low-temperature
Liquid chiller - explosion-proof Chiller CDLJ -115℃~-50℃ - Wuxi Guanya Temperature Refrigeration Technology Co. Ltd.. - laboratory / low-temperature
Liquid chiller - explosion-proof Chiller CDLJ -115℃~-50℃ - Wuxi Guanya Temperature Refrigeration Technology Co. Ltd.. - laboratory / low-temperature - image - 2
Liquid chiller - explosion-proof Chiller CDLJ -115℃~-50℃ - Wuxi Guanya Temperature Refrigeration Technology Co. Ltd.. - laboratory / low-temperature - image - 3
Liquid chiller - explosion-proof Chiller CDLJ -115℃~-50℃ - Wuxi Guanya Temperature Refrigeration Technology Co. Ltd.. - laboratory / low-temperature - image - 4
Add to favorites
Compare this product


Characteristics

Material
liquid
Applications
laboratory
Other characteristics
low-temperature
Power

Max.: 90 kW

Min.: 3 kW

Maximum temperature

Max.: -50 °C
(-58 °F)

Min.: -115 °C
(-175 °F)

Flow rate

Max.: 50 m³/h
(1,765.733 ft³/h)

Min.: 6.6 m³/h
(233.077 ft³/h)

Pressure

2.5 bar
(36.259 psi)

Description

1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature 2. Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK. Bitzer, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency 3. Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety. 4. DANFOSS electronic expansion valve, high precision control; 5. Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm; 6. Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water; LNEYA adopts the world famous brand compressor, which can extend the service life of -10°C to 200°C degree industrial chiller, enhance the refrigeration effect, reduce the energy consumption and noise of -10°C to 200°C industrial chiller. How Long Does the Cold Water Machine in the Lab Need to be Cleaned? After running for a period of time, Lab Chiller CDLJ -115℃~-50℃ requires for the protection and the maintenance of all. If the laboratory chillers lack the necessary maintenance and protection, it means the high operation defect rate of the laboratory chiller. When running laboratory cold water machine, it needs a thorough clean for the machine to keep the laboratory machine safe and stable after using half a year's time.
