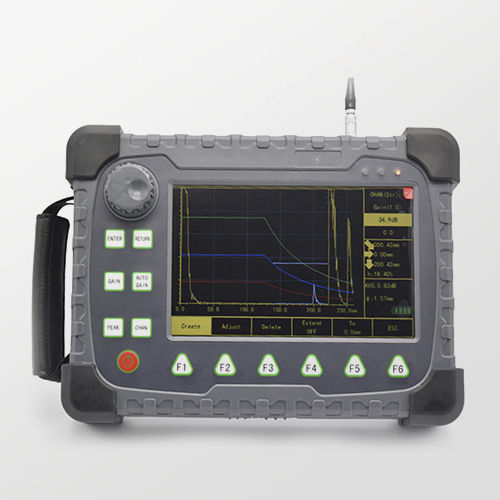

The JB710 SERIES portable digital ultrasonic flaw detector is a perfect collection of high-tech which is composed by ultrasonic flaw detection, computer, electronics, mold, technology and other modern high-tech. It provides the industry with superior performance, and more powerful digital ultrasonic flaw detector.
High Specification And Function
*Meet the requirements of EN12668-1
*Tunable square wave pulser
*Optional Digital high dynamic range receiver
*Digital filters for enhanced signal-to-noise ratio
*Knob or navigation pad adjustment configurations
Powerful Storage Capacity
*8+ hours of battery life, with two lithium battery
*8G internal memory can storage 10000 A-scan images, and can storage the record for more than 100 hours
*ASME, AWS D1.1/D1.1M and all international Standards include
Transmit Pulse
Square wave. Emitter voltage of 25V - 400V continuously adjustable, Stepping 25V Continuously adjustable width 30ns - 1000ns, Continuously adjustable width 30ns - 1000ns,Stepping 5ns
Work Type
Single, double
Impedance Matching
50Ω, 100Ω, 150Ω, 400Ω
Band Select
Divided into 0.5-4MHz, 2-8MHz, 0.5-20MHz three
Gain Range
0.0-110.0dB (step 0.1dB, 1.0dB, 2.0dB, 6.0dB adjustable)
Detection Range
2.0 - 10000mm (longitudinal wave in steel). Continuously adjustable
Detection Methods
the positive half wave, negative half wave, full-wave, RF.
Pulse shift: -45 - 9999mm
Probe Zero Value
0 - 999.99μs
Pulse Repetition Frequency
25 - 1000Hz, manual adjustment mode
Vertical Linearity Error
≤3%
Level Linearity Error
≤0.3%
Sensitivity Margin
> 60dB (200Φ2 flat bottom hole)
Resolution
> 36dB
Dynamic Range
≥32dB
Rejection
(0-99) %, does not affect the linearity and gain
