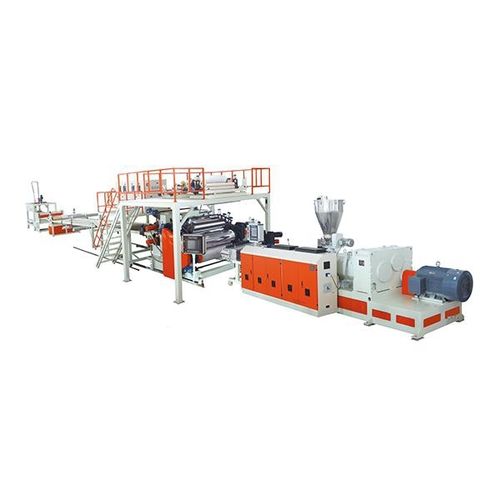

Pipe extrusion line SJSZ 110/220plastic sheetfor thermoplasticswith air cooling
Add to favorites
Compare this product
Characteristics
- Type
- for pipes, plastic sheet
- Treated material
- for thermoplastics
- Other characteristics
- with air cooling
- Applications
- corrugated sheet, multilayer sheet
Description
Parameter
1. Screw Feeder
Diameter of pipe:100mm
Pipe length:6m
Volume of the tank:150kg
Motor Power:2.2kw
Tank Material:Stainless steel
2. SJSZ110/220 Double Screw Extruder
Extruder Capacity 1000Kg/h
Main motor 200kw AC Siemens
Voltage 380 V50HZ or Customized
Power 200KW
Speed 30-1500rpm
Host motor inverter 200KW ABB
Central Height 1000mm
Screw and barrel （Guangyou）
Material 38GrMoAlA, nitriding
Nitride thickness 0.6~0.7mm
Surface hardness HV>=940
Brittleness ≤ 2 degree
Finish degree 0.8
Cylinder type Two-section type,the front section is inlaid
Diameter of screw 110/220mm
Meshing type of screws Conical meshing
Screw speed 3~32rpm
Temperature control module 6 zones for barrel, 1 zone confluence core, 10 zones for mould
Heater &Cooler
Heater Cast-aluminum heater
Heating zones 6
Barrel heating power 105kw
Range of temperature control 50-300℃
