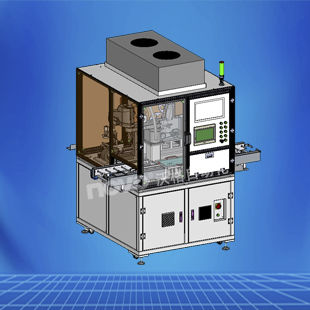

Stretch film making machine

This equipment is applicable to manufacture backlight components of 10.1-15.6 inch (suit to coil material). It can automatically transfer and locate REF, automatically locate, pick, stick and press film. Film-pick adopts visual location. It is with scan function and bind visual information together with product. Boundary Dimension: L1400mm, W1200mm (excluding loading & unloading conveyor), H1750mm (excluding tower lamp, FFU) Weight: 500kg Power Supply: AC220V, 3.5KW Air Supply：0.5~0.7MPa，≥300L/min CT: 6.5s Stick Precision: ±0.15mm Product Specification：10.1~15.6 Inch Film Length: 140-360mm Film Load Thickness: 100mm •CCD Visual System: Hikvision CCD, Cognex Vision Pro Software •Robot: Inovance IPC：ADLINK PLC：Inovance Batch loading of film, with long change period, short loading time and high production efficiency; Film adopts CCD visual system to make high-precise location to ensure accurate assemble effect of product; Adopt 4-axis transfer arm to stick film with fast speed, CT 6.5S/PCS; Design based on dust-free high standard to ensure the control of internal clean class and yield. The clean class is up to a thousand level; Be equipped with scan function. It can bind data from visual location and product and be traced to ensure yield; Production data within 30 days can be saved, and can be connected to MES system.
